PF0560.154NLT
ActivePulse Electronics
FIXED IND 150UH 850MA 506MOHM SM
PF0560.154NLT
ActivePulse Electronics
FIXED IND 150UH 850MA 506MOHM SM
Description
General part information
PF0560.154NLT

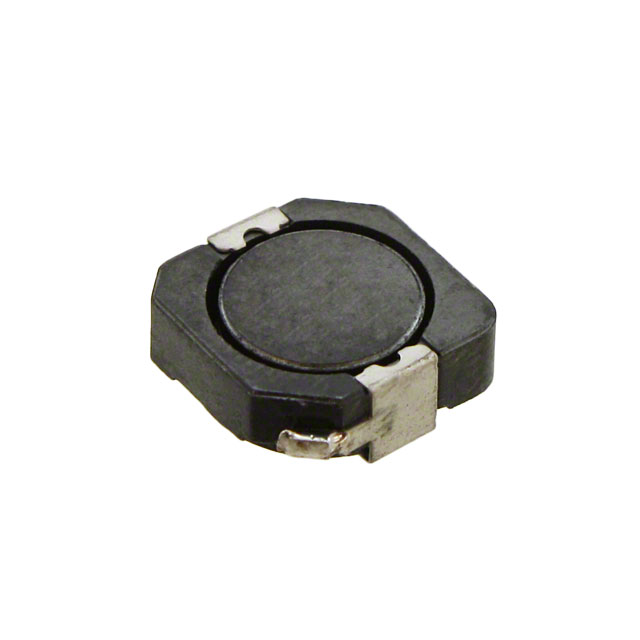

150 µH Shielded Wirewound Inductor 850 mA 506mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PF0560.154NLT |
|---|---|
| Current - Saturation (Isat) | 1.15 A |
| Current Rating | 0.85 A |
| DC Resistance (DCR) (Max) | 506 mOhm |
| Frequency - Self Resonant | 5.4 MHz |
| Height - Seated (Max) | 0.157 in |
| Inductance | 150 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.409 in |
| Size / Dimension Width | 0.406 in |
| Tolerance | 25 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
