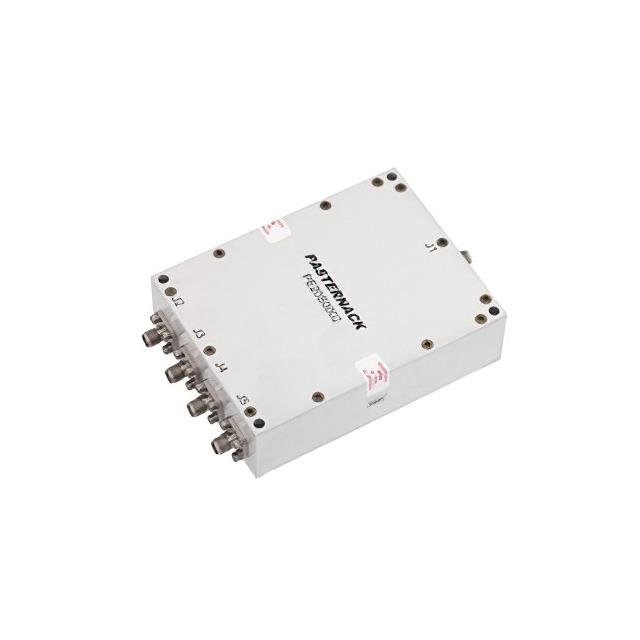

PE20S0002
ActivePasternack
4 WAY BROADBAND COMBINER FROM 20
PE20S0002
ActivePasternack
4 WAY BROADBAND COMBINER FROM 20
Description
General part information
PE20S0002
RF Power Divider 20 MHz ~ 1 GHz Isolation (Min) 12dB, 1.3 VSWR (Max) Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | PE20S0002 |
|---|---|
| Frequency Range 1 (Max) | 1 GHz |
| Frequency Range 1 (Min) | 20 MHz |
| Insertion Loss | 0.75 dB |
| Isolation (Min) | 12 dB |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Height | 1.118 in |
| Size / Dimension Length | 4 in |
| Size / Dimension Width | 3 in |
| VSWR (Max) | 1.3 |
