Description
General part information

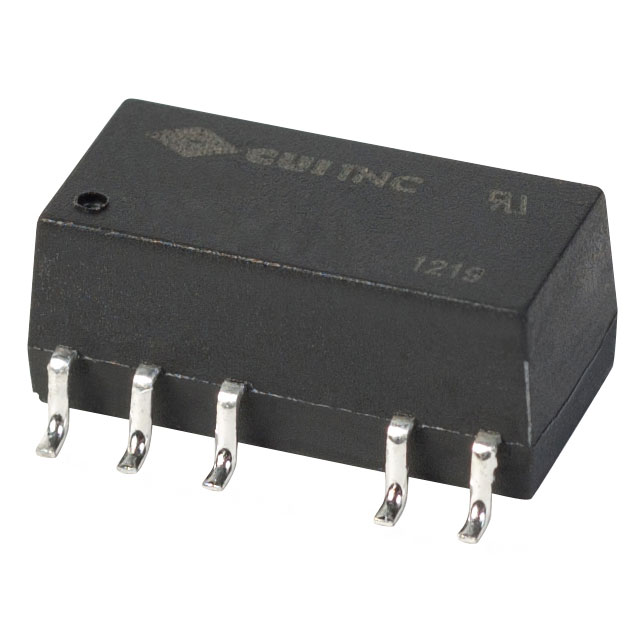

VEFT1-S12-D5-SMT-TR
Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 10.8V - 13.2V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | VEFT1-S12-D5-SMT-TR |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) Options | 100mA |
| Efficiency | 74 % |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 10 Leads |
| Package Name | 12-SMD Module |
| Power (Watts) | 1 W |
| Size / Dimension Height | 0.24 in |
| Size / Dimension Length | 0.6 in |
| Size / Dimension Width | 0.3 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 13.2 V |
| Voltage - Input (Min) | 10.8 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | -5 V |
