8380-3SG-311
ActiveConxall/Switchcraft

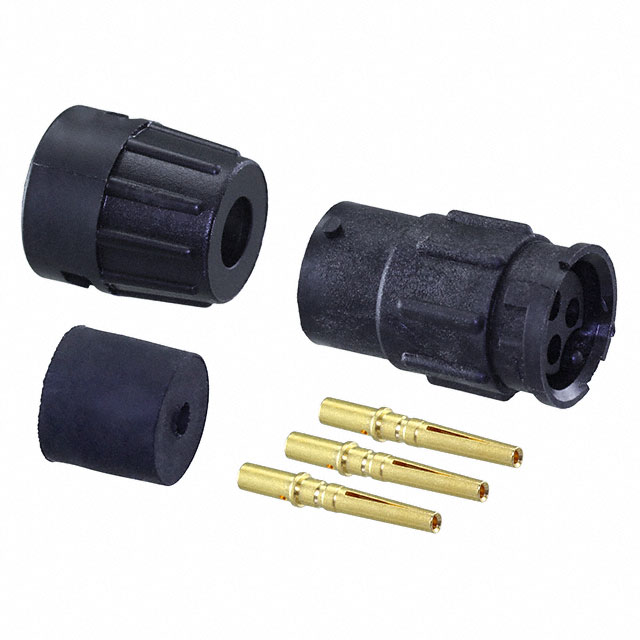

CONN RCPT FMALE 3POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8380-3SG-311
ActiveConxall/Switchcraft
CONN RCPT FMALE 3POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 8380-3SG-311 | 8380-3SG Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening [diameter] | 2.29 mm | 2.29 mm |
| Cable Opening [diameter] | 0.14 in, 0.09 in | 0.09 - 0.14 in |
| Cable Opening [diameter] | 3.56 mm | 3.56 mm |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 V | 600 V |
8380-3SG Series
CONN RCPT FMALE 3POS GOLD CRIMP
| Part | Features | Mounting Type | Ingress Protection | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Backshell Material, Plating | Orientation | Fastening Type | Contact Finish - Mating | Termination | Applications | Color | Voltage Rating | Primary Material | Shielding | Current Rating (Amps) | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 8380-3SG-311 | Backshell | Free Hanging (In-Line) | Weathertight | Brass | -40 °C | 115 °C | 2.29 mm | 0.09 in, 0.14 in | 3.56 mm | Nylon, Polyamide (PA) | Keyed | Bayonet Lock | Gold | Crimp | Automotive, Communication Systems, Instrumentation | Black | 600 V | Plastic | Unshielded | Varies by Wire Gauge | Receptacle, Female Sockets |
Conxall/Switchcraft 8380-3SG-3DC | Backshell | Free Hanging (In-Line) | Weathertight | Brass | -40 °C | 115 °C | Nylon, Polyamide (PA) | Keyed | Bayonet Lock | Gold | Crimp | Automotive, Communication Systems, Instrumentation | Black | 600 V | Plastic | Unshielded | Varies by Wire Gauge | Receptacle, Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 8.52 | |
Description
General part information
8380-3SG Series
3 Position Circular Connector Receptacle, Female Sockets Crimp
