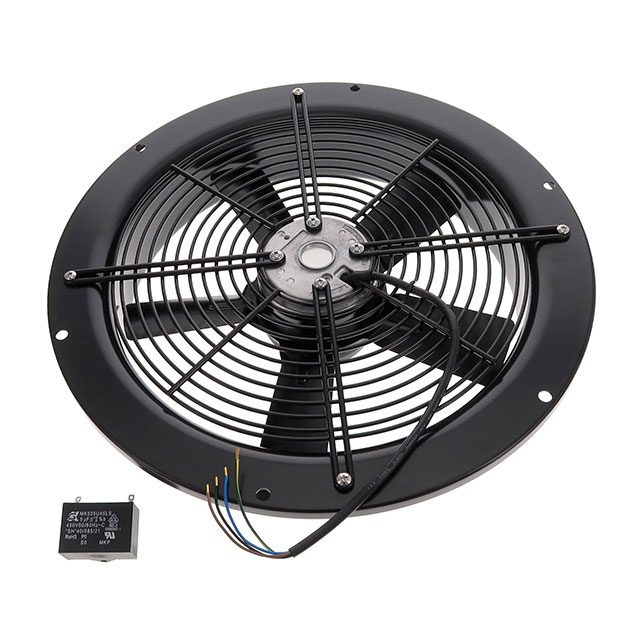

UF300BNA23-H1C2A

Active

Mechatronics Fan Group

FAN AXIAL 398X98.3MM 230VAC WIRE

Search across all available documentation for this part.

Active

Mechatronics Fan Group

FAN AXIAL 398X98.3MM 230VAC WIRE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF300BNA23-H1C2A	UF300 Series

Air Flow	1615 CFM	1615 CFM
Air Flow	45.22 mł/min	45.22 mł/min
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	1.2 A	1.2 - 2.4 A
Fan Type	Tubeaxial	Tubeaxial
Features	Permanent Split Capacitor Motor	Permanent Split Capacitor Motor
Material - Blade	Steel	Steel
Material - Frame	Steel	Steel
Noise	78 dB(A)	78 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Operating Temperature [Min]	-20 C	-20 C
Power (Watts)	200 W	200 W
RPM	2950 RPM	2950 RPM
Size / Dimension	Round	Round
Size / Dimension [diameter]	398 mm	398 mm
Static Pressure	1.1 in H2O	1.1 in H2O
Static Pressure	274 Pa	274 Pa
Termination	2 Wire Leads	2 Wire Leads
Voltage - Rated	230 VAC	115 - 230 VAC
Weight	10 lbs	9.9 - 10 lbs
Weight	4.5 kg	4.5 kg
Width [x]	98.3 mm	98.3 mm

FAN AXIAL 380X98MM 115VAC

Part	Width [x]	Material - Frame	Termination	Fan Type	Weight	Weight	Size / Dimension	Size / Dimension [diameter]	Material - Blade	Power (Watts)	Current Rating (Amps)	Approval Agency	Voltage - Rated	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Features	RPM	Air Flow	Air Flow	Bearing Type
Mechatronics Fan Group UF300BNA12-H1C2A	98.3 mm	Steel	2 Wire Leads	Tubeaxial	9.9 lbs	4.5 kg	Round	398 mm	Steel	200 W	2.4 A	CE, cUL, TUV, UL	115 VAC	1.1 in H2O	274 Pa	-20 °C	70 °C	-20 C	70 °C	78 dB(A)	Permanent Split Capacitor Motor	2950 RPM	45.22 mł/min	1615 CFM	Ball
Mechatronics Fan Group UF300BNA23-H1C2A	98.3 mm	Steel	2 Wire Leads	Tubeaxial	10 lbs	4.5 kg	Round	398 mm	Steel	200 W	1.2 A	CE, cUL, TUV, UL	230 VAC	1.1 in H2O	274 Pa	-20 °C	70 °C	-20 C	70 °C	78 dB(A)	Permanent Split Capacitor Motor	2950 RPM	45.22 mł/min	1615 CFM	Ball

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 230VAC Round - 398mm Dia Ball 1615.0 CFM (45.22m³/min) 2 Wire Leads
