FML1620R
ActiveAC Connectors
L16-20 FLUSH MOUNT RECEPTACLE
FML1620R
ActiveAC Connectors
L16-20 FLUSH MOUNT RECEPTACLE
Description
General part information
FML1620R

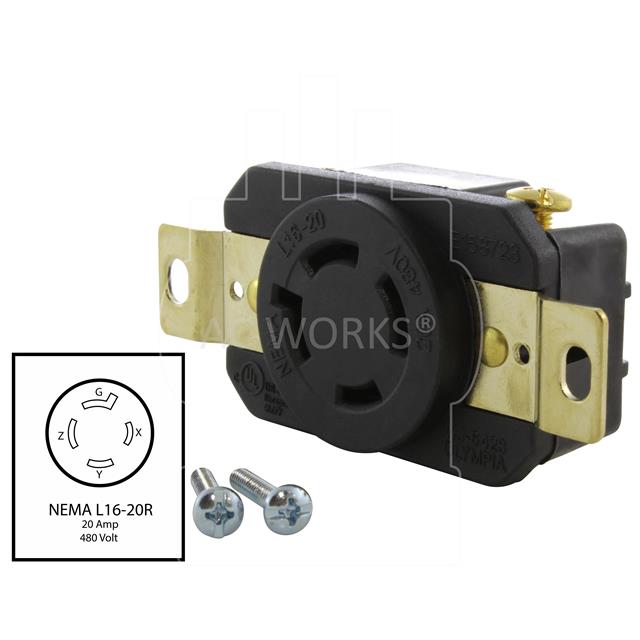

Power Connector Receptacle, Female Socket NEMA L16-20R Outlet Box
Technical Specifications
Parameters and characteristics for this part
| Specification | FML1620R |
|---|---|
| Approval Agency | cULus |
| Connector Style | NEMA L16-20R |
| Connector Type | Recepture, Female Socket |
| Current Rating | 20 A |
| Features | Impact Resistant, Chemical Resistant, Weather Resistant |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Outlet Box |
| Number of Positions | 4 |
| Termination | Screw |
| Voltage Rating | 480 VAC, 480 VAC |
| Voltage Rating (Phase) | 3 Phase |
