2-2384214-4

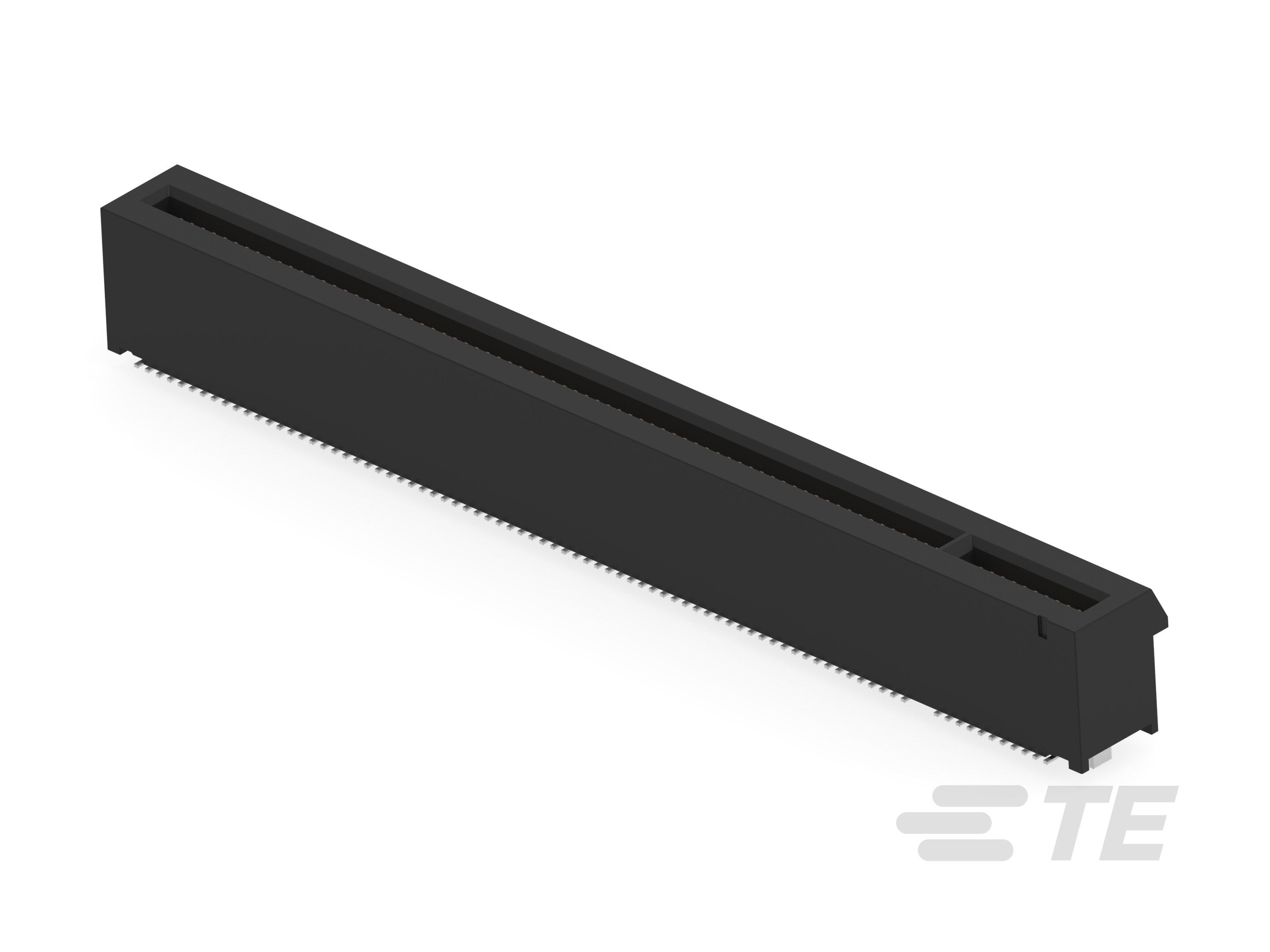

Board-to-Board, 164 Position, 1 mm [.04 in] Centerline, Vertical, Black, 11.25 mm [.44 in] Height, 8.2 mm [.32 in] Width, PCI & PCI Express Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-2384214-4 |
|---|---|
| Card Thickness | 0.062 in |
| Card Type | PCI Express™ |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Locking Ramp, Board Guide, Solder Retention |
| Gender | Female |
| Mounting Type | Surface Mount |
| Number of Bay | 71 |
| Number of Positions | 164, 11 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.039 in |
| Read Out | Dual |
| Termination | Solder |
