Description
General part information

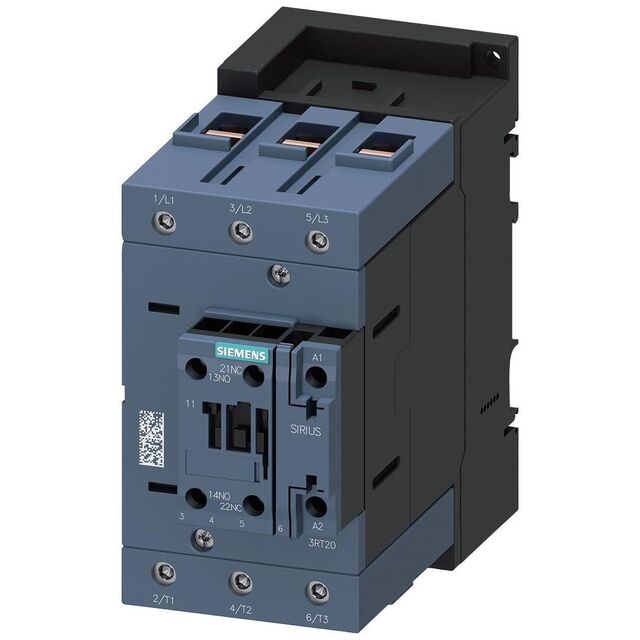

3RT20451AL00
CONT..AC3:37KW.1NO+1NC.AC 125 V
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RT20451AL00 |
|---|---|
| Coil Power | 296 VA |
| Coil Voltage | 125 VDC |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 80 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 100 V |
| Operate Time | 50 ms |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Pin Count | 3 pins |
| Release Time | 21 ms |
| Switching Voltage AC (Max) | 1000 VAC |
| Termination Style | Screw Terminal |
