02237000
ActiveBopla Enclosures

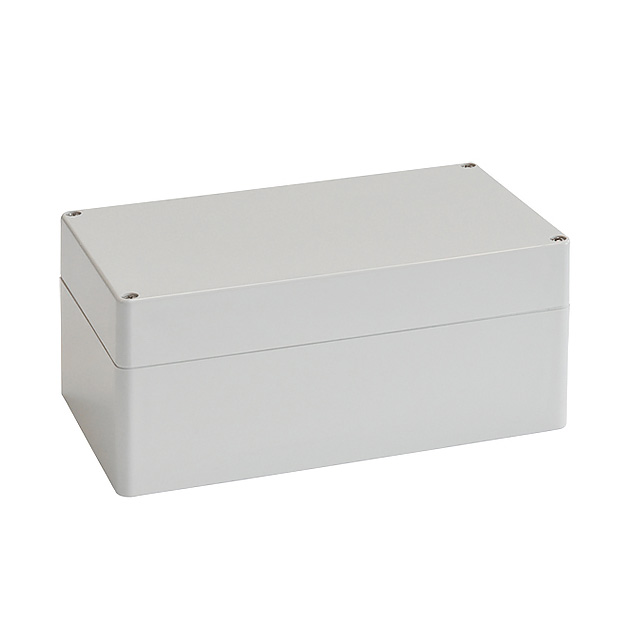

LIGHT GRAY POLYCARBONATE WALL MOUNT ENCLOSURE
02237000
ActiveBopla Enclosures
LIGHT GRAY POLYCARBONATE WALL MOUNT ENCLOSURE
Description
General part information
02237000
Box Plastic, Polycarbonate Gray Cover Included 7.874" L x 4.724" W (200.00mm x 120.00mm) X 3.543" (90.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 02237000 |
|---|---|
| Area (L x W) | 37.2 in² |
| Color | Gray |
| Container Type | Box |
| Design | Cover Included |
| Features | Watertight |
| Height | 3.543 in |
| Material | Polycarbonate (PC), Plastic, Polycarbonate |
| Material Flammability Rating | UL94 V-2 |
| Ratings | UL-508, IP66, NEMA 4X |
| Size / Dimension Length | 7.874 in |
| Size / Dimension Width | 4.724 in |
| Weight | 1 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
