AB2040B-LW100-R
ActivePUI Audio, Inc.

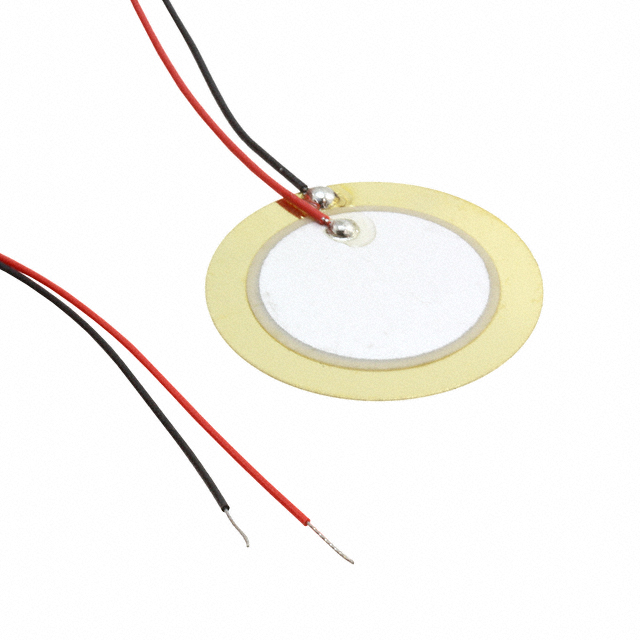

PIEZO BENDER, 4 KHZ, 0.025 UF, 350 OHM, 0.79" DIA, 0.02" H
AB2040B-LW100-R
ActivePUI Audio, Inc.
PIEZO BENDER, 4 KHZ, 0.025 UF, 350 OHM, 0.79" DIA, 0.02" H
Description
General part information
AB2040B-LW100-R
4 kHz Standard Buzzer Element 30V p-p 0.787" Dia (20.00mm) 350 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | AB2040B-LW100-R |
|---|---|
| Capacitance | 25000 pF |
| Frequency | 4 kHz |
| Impedance | 350 Ohms |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Size / Dimension Diameter | 0.787 in |
| Termination | Wire Leads |
| Type | Standard |
| Voltage - Input (Max) | 30 V p-p |
