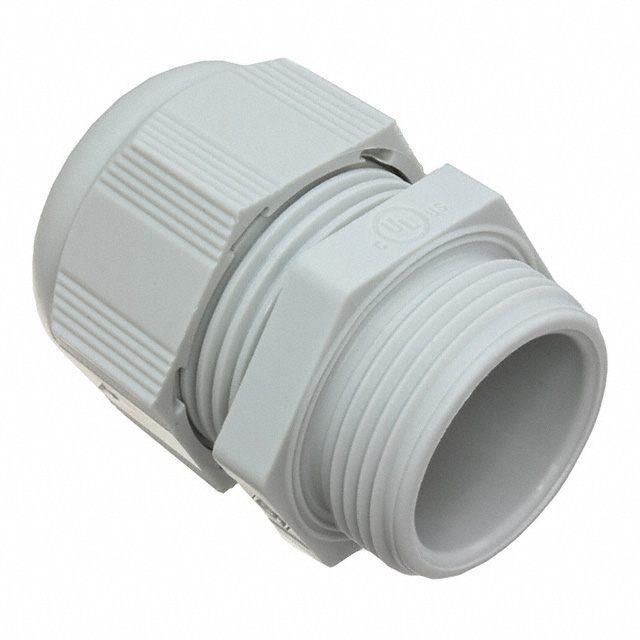

Specification	5309 121

Color	Gray
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Material	Nylon, Polyamide (PA)
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Outside Cable Diameter (Max)	0.63 in
Outside Cable Diameter (Min)	0.276 in
Panel Hole Size	1.114 in
Thread Length	0.433 in
Thread Size	PG21
Type	Cable Gland

5309 Series

Part	Outside Cable Diameter (Min)	Thread Pitch	Thread Diameter	Operating Temperature (Min)	Operating Temperature (Max)	Material	Color	Thread Length	Panel Hole Size	Type	Ingress Protection IP Rating	Ingress Protection Description	Outside Cable Diameter (Max)	Includes	Thread Size
Altech Corporation 5309 763	1.024 in	1.5 mm	63 mm	-25 °C	100 °C	Nylon Polyamide (PA)	Black	0.472 in	2.48 in	Cable Gland	IP68	Dust Tight Waterproof	1.535 in
Altech Corporation 5309 211/SET	0.079 in			-40 °C	100 °C	Nylon 6 Polyamide (PA6)	Black	0.315 in	0.732 in	Cable Gland	IP68	Dust Tight Waterproof	0.276 in	Locknut	PG11
Altech Corporation 5309 116/SET	0.197 in			-40 °C	100 °C	Nylon 6 Polyamide (PA6)	Light Gray	0.394 in	0.886 in	Cable Gland	IP68	Dust Tight Waterproof	0.472 in	Locknut	PG16
Altech Corporation 5309 725/SET	0.276 in	1.5 mm	25 mm	-40 °C	100 °C	Nylon Polyamide (PA)	Black	0.394 in	0.984 in	Cable Gland	IP68	Dust Tight Waterproof	0.63 in	Locknut
Altech Corporation 5309 715/SET	0.059 in	1.5 mm	16 mm	-25 °C	100 °C	Nylon 6 Polyamide (PA6)	Black	0.394 in	0.63 in	Cable Gland	IP68	Dust Tight Waterproof	0.236 in	Locknut
Altech Corporation 5309 615	0.059 in	1.5 mm	16 mm	-25 °C	100 °C	Nylon 6 Polyamide (PA6)	Light Gray	0.394 in	0.63 in	Cable Gland	IP68	Dust Tight Waterproof	0.236 in
Altech Corporation 5309 624	0.197 in	1.5 mm	25 mm	-25 °C	100 °C	Nylon Polyamide (PA)	Gray	0.394 in	0.984 in	Cable Gland	IP68	Dust Tight Waterproof	0.472 in
Altech Corporation 5309 229/SET	0.433 in			-40 °C	100 °C	Nylon 6 Polyamide (PA6)	Black	0.433 in	1.457 in	Cable Gland	IP68	Dust Tight Waterproof	0.827 in	Locknut	PG29
Altech Corporation 5309 248	1.024 in			-40 °C	100 °C	Nylon Polyamide (PA)	Black	0.551 in	2.335 in	Cable Gland	IP68	Dust Tight Waterproof	1.535 in		PG48
Altech Corporation 5309 216/SET	0.197 in			-40 °C	100 °C	Nylon Polyamide (PA)	Black	0.394 in	0.886 in	Cable Gland	IP68	Dust Tight Waterproof	0.472 in	Locknut	PG16
