TPSV158M004R0075
ActiveKYOCERA AVX
CAP TANT 1500UF 20% 4V 2924
TPSV158M004R0075
ActiveKYOCERA AVX
CAP TANT 1500UF 20% 4V 2924
Description
General part information
TPSV158M004R0075

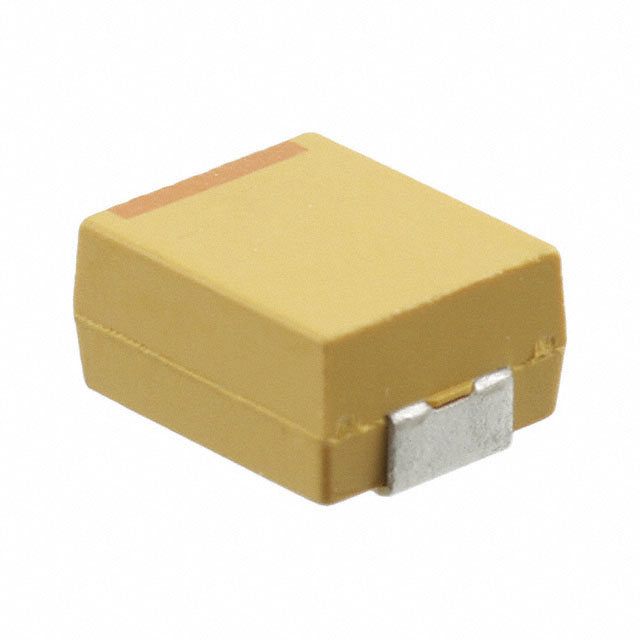

1500 µF Molded Tantalum Capacitors 4 V 2924 (7361 Metric) 75mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | TPSV158M004R0075 |
|---|---|
| Capacitance | 1500 µF |
| ESR (Equivalent Series Resistance) | 75 mOhm |
| Features | General Purpose |
| Height - Seated (Max) | 0.148 in |
| Manufacturer Size Code | V |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2924 (7361 Metric) |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.24 in |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
