33-1320-05-0150

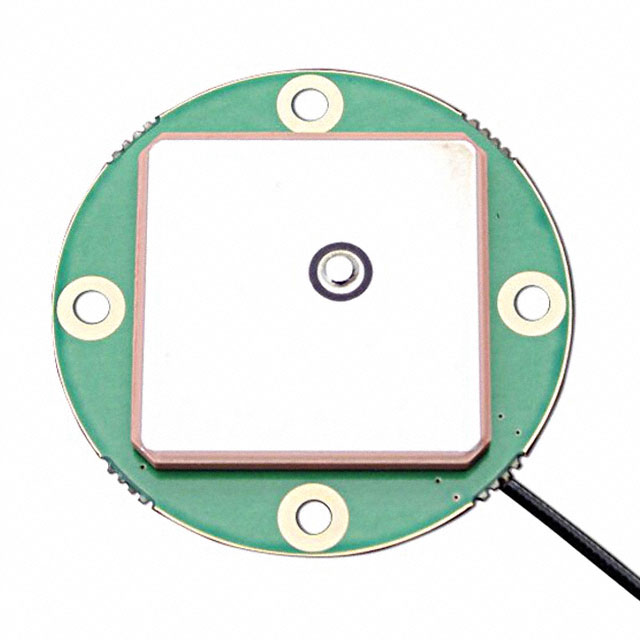

RF ANTENNA GLONASS, GPS Ceramic Patch MCX Male Adhesive, Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 33-1320-05-0150 |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | GPS, GLONASS |
| Features | Filter, Cable, LNA, 150mm |
| Frequency (Band) | 1.602 GHz |
| Frequency (Center) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.606 GHz |
| Frequency Range (Min) | 1.575 GHz |
| Gain | 28 dB |
| Height (Max) | 0.333 in |
| Mounting Type | Adhesive, Chassis Mount |
| Number of Bands | 2 |
| Return Loss | -10 dB |
| RF Family/Standard | Navigation |
| Termination | MCX Male |
| VSWR | 1.5 |
