130481
ActiveTE Connectivity AMP Connectors

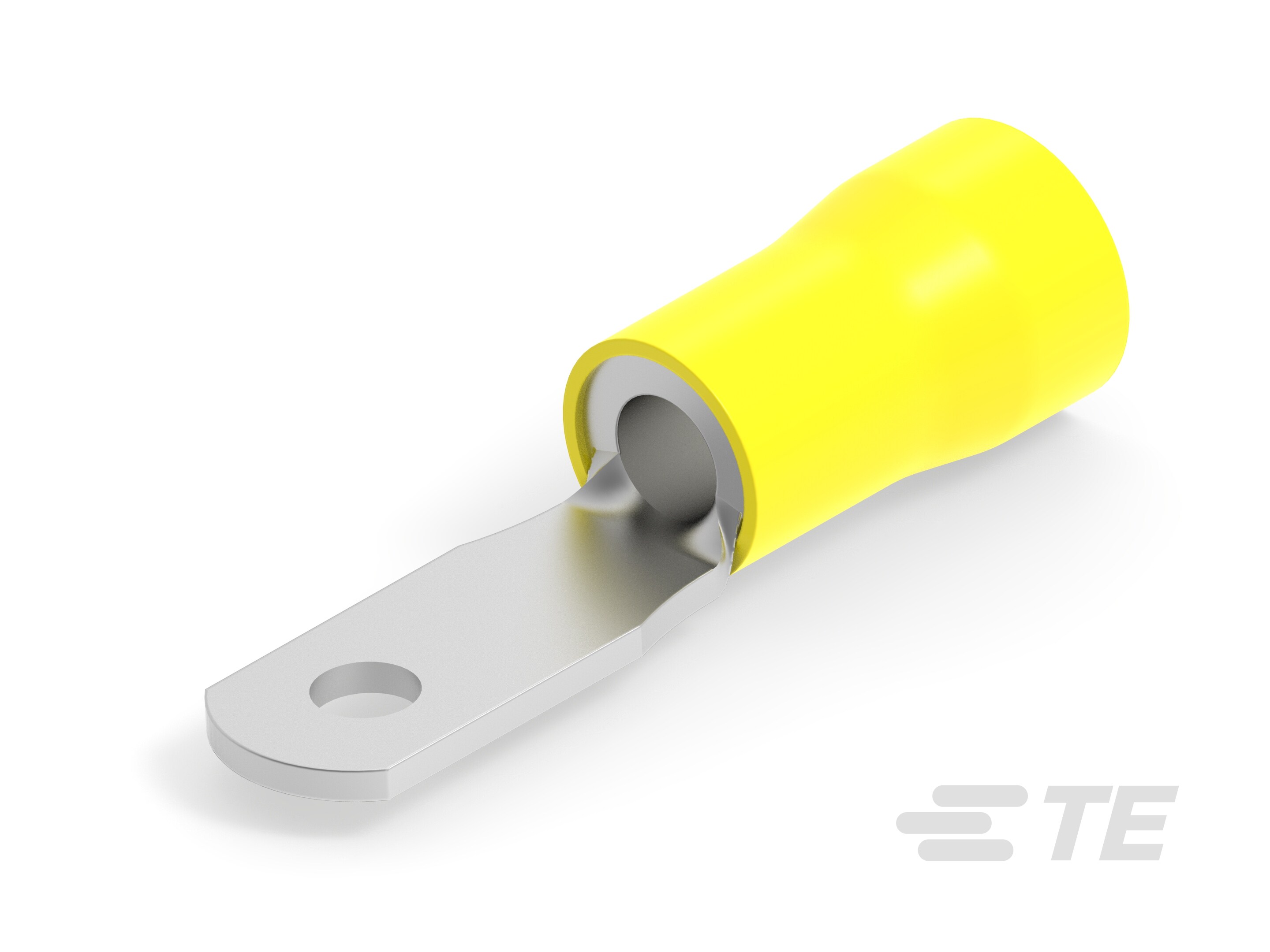

TERM, SHEARED RING, PIDG, 12-10, M2.5
130481
ActiveTE Connectivity AMP Connectors
TERM, SHEARED RING, PIDG, 12-10, M2.5
Description
General part information
130481
Closed Ring Tongue Terminal, 12 – 10 AWG, M2.5 Stud, 3 mm [.118 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated, PIDG
Technical Specifications
Parameters and characteristics for this part
| Specification | 130481 |
|---|---|
| Color | Yellow |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation | Insulated |
| Length - Overall | 1.236 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M2.5 Stud |
| Stud/Tab Size | 2.5 mm |
| Stud/Tab Type | Stud |
| Terminal Type | Flat Sided |
| Termination | Crimp |
| Thickness | 0.039 in |
| Width - Outer Edges | 0.268 in |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
