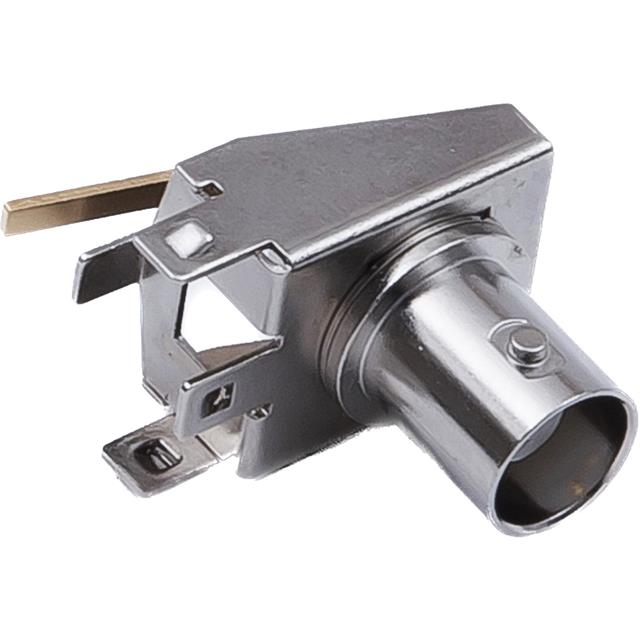

BNC-274LR
BNC Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | BNC-274LR |
|---|---|
| Body Finish | Nickel |
| Body Material | Zinc Die Cast |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 300 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
