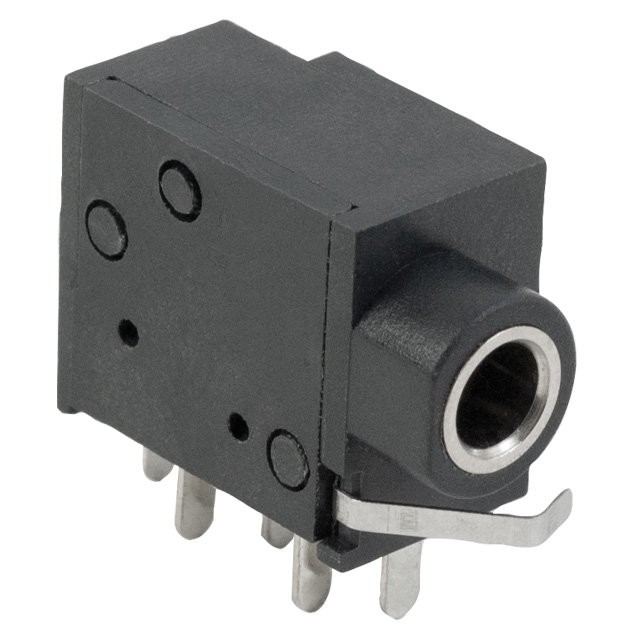

Specification	SJ-3598

Actual Diameter	0.142 in
Body Color	Black
Body Material	Brass
Connector Type	Phone Jack
Contact Material	Phosphor Bronze
Contact Material - Plating	Tin
Current Rating	1 A
Features	Grounding Tab
Gender	Female
Housing Material	Nylon 6/6, Polyamide, PA66
Industry Recognized Mating Diameter (Headphone - Mini Plug)	3.5 mm
Industry Recognized Mating Diameter (Headphone Options)	Mini Plug
Internal Switch(s)	Single Switch
Mating Length/Depth	0.551 in
Mounting Type	Through Hole, Right Angle
Number of Conductors	3 Conductors
Number of Contacts	5 Contacts
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Shielding	Shielded
Signal Lines	3 Conductor, TRS, Stereo
Termination	Solder
Voltage - Rated	12 VAC

SJ-35 Series

...

Part	Termination	Number of Conductors	Number of Contacts	Shielding	Signal Lines	Features	Actual Diameter	Connector Type	Gender	Insulation Color	Internal Switch(s)	Industry Recognized Mating Diameter (Headphone - Mini Plug)	Industry Recognized Mating Diameter (Headphone Options)	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Rated	Body Color	Contact Material - Plating	Current Rating	Contact Material	Housing Material	Mating Length/Depth	Internal Switch Count	Body Material
Same Sky (Formerly CUI Devices) SJ-3524-SMT-TR-GR	Solder	3 Conductors	4 Contacts	Unshielded	3 Conductor Stereo TRS	Board Guide	0.142 in	Phone Jack	Female	Green	Single Switch	3.5 mm	Mini Plug	Right Angle Surface Mount	85 °C	-25 °C
Same Sky (Formerly CUI Devices) SJ-3525NG	Solder	3 Conductors	5 Contacts	Unshielded	3 Conductor Stereo TRS		0.142 in	Phone Jack	Female		Single Switch	3.5 mm	Mini Plug	Right Angle Through Hole	85 °C	-25 °C
Same Sky (Formerly CUI Devices) SJ-3554NG	Kinked Pin	3 Conductors	4 Contacts	Unshielded	3 Conductor Stereo TRS		0.142 in	Phone Jack	Female		Single Switch	3.5 mm	Mini Plug	Right Angle Through Hole	85 °C	-25 °C	12 VAC	Black	Silver	1 A	Brass Phosphor Bronze	PBT Polybutylene Terephthalate	0.551 in
Same Sky (Formerly CUI Devices) SJ-3513SMT	Solder	3 Conductors	3 Contacts	Unshielded	3 Conductor Stereo TRS	Board Guide	0.142 in	Phone Jack	Female		Does Not Contain Switch	3.5 mm	Mini Plug	Right Angle Surface Mount	85 °C	-25 °C	12 VAC	Black	Tin	1 A	Copper Alloy	Nylon 6T PA6T Polyamide
Same Sky (Formerly CUI Devices) SJ-3555NG	Kinked Pin	3 Conductors	5 Contacts	Unshielded	3 Conductor Stereo TRS		0.142 in	Phone Jack	Female			3.5 mm	Mini Plug	Right Angle Through Hole	85 °C	-25 °C								2 count
Same Sky (Formerly CUI Devices) SJ-3523-SMT-1	Solder	3 Conductors	3 Contacts	Unshielded	3 Conductor Stereo TRS		0.142 in	Phone Jack	Female		Does Not Contain Switch	3.5 mm	Mini Plug	Right Angle Surface Mount	85 °C	-25 °C	12 VAC	Black Silver	Silver	1 A	Copper Alloy	Nylon 6T PA6T Polyamide	0.551 in		Brass
Same Sky (Formerly CUI Devices) SJ-3543N	Kinked Pin	3 Conductors	3 Contacts	Unshielded	3 Conductor Stereo TRS		0.142 in	Phone Jack	Female		Does Not Contain Switch	3.5 mm	Mini Plug	Right Angle Through Hole	85 °C	-25 °C	12 VAC	Black	Nickel	1 A	Brass Copper Alloy	PBT Polybutylene Terephthalate	0.551 in		Brass
Same Sky (Formerly CUI Devices) SJ-3502-SMT-TR	Solder	3 Conductors	3 Contacts	Shielded	3 Conductor Stereo TRS	Board Lock	0.142 in	Phone Jack	Female		Does Not Contain Switch	3.5 mm	Mini Plug	Board Cutout Right Angle Surface Mount	85 °C	-25 °C
Same Sky (Formerly CUI Devices) SJ-3544	Kinked Pin	3 Conductors	4 Contacts	Unshielded	3 Conductor Stereo TRS	Thread Lock	0.142 in	Phone Jack	Female		Single Switch	3.5 mm	Mini Plug	Right Angle Through Hole	85 °C	-25 °C
Same Sky (Formerly CUI Devices) SJ-3534NG	Solder	3 Conductors	4 Contacts	Unshielded	3 Conductor Stereo TRS		0.142 in	Phone Jack	Female		Single Switch	3.5 mm	Mini Plug	Right Angle Through Hole	85 °C	-25 °C
