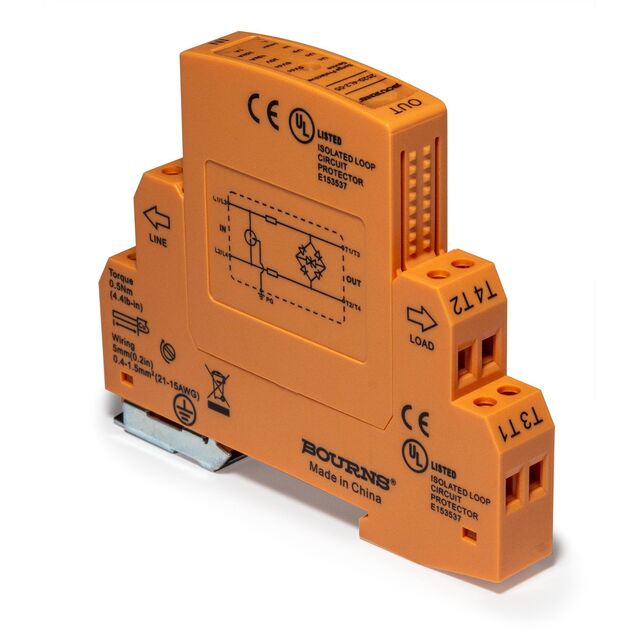

2520-4L3-05
ActiveBourns Inc.
SPD 4.2VAC/6VDC MCOV 4 POLE
2520-4L3-05
ActiveBourns Inc.
SPD 4.2VAC/6VDC MCOV 4 POLE
Description
General part information
2520-4L3-05
SPD 4.2VAC/6VDC MCOV 4 POLE
Technical Specifications
Parameters and characteristics for this part
| Specification | 2520-4L3-05 |
|---|---|
| Current - Discharge (Max) | 20 kA |
| Current - Discharge (Nom) | 10 kA |
| Form | Module, Base |
| Mounting Type | DIN Rail |
| Number of Poles | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Voltage - Continuous Operating (Max) (MCOV) AC | 4.2 VAC |
| Voltage - Continuous Operating (Max) (MCOV) DC | 6 VDC |
| Voltage - Protection Level (VP) (2416) | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
