1-1377175-5
ActiveTE Connectivity AMP Connectors

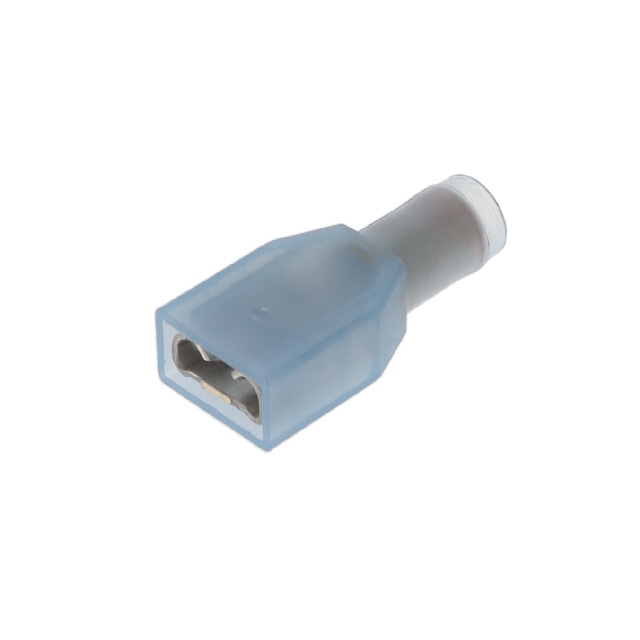

CONN QC RCPT 12-13AWG 0.250
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1377175-5
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 12-13AWG 0.250
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1377175-5 | 1377175 Series |
|---|---|---|
| Color | Blue | Natural, Red, Blue |
| Contact Finish | Tin | Tin |
| Contact Material | Brass | Brass |
| For Use With/Related Products | - | 0.25 in |
| For Use With/Related Products | - | Quick Connects |
| For Use With/Related Products | - | 6.35 mm |
| Gender | Female | Tab, Male, Female, Female, Receptacle |
| Insulation | Fully Insulated | Fully Insulated, Non-Insulated, Non-Mating End Insulated |
| Insulation Diameter [diameter] | 3.99 mm | 3.4 - 3.99 mm |
| Insulation Diameter [diameter] | 0.157 in | 0.134 - 0.157 in |
| Length - Overall | - | 20.09 - 21.59 mm |
| Length - Overall | - | 0.791 - 0.862 " |
| Length - Overall | - | 21.9 mm |
| Material | - | Nylon, Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | - | Contacts Not Included |
| Number of Positions | - | 1 - 6 |
| Stacking Direction | - | Multiple, Side to Side, Perpendicular, Top to Bottom and Side to Side |
| Style | - | Housing |
| Tab Length | - | 0.303 in |
| Tab Length | - | 0.25 - 7.7 mm |
| Tab Length | - | 6.35 mm |
| Tab Thickness | 0.032 in | 0.032 in |
| Tab Thickness | 0.81 mm | 0.81 mm |
| Tab Width | 6.35 mm | 4.75 - 6.35 mm |
| Tab Width | 0.25 in | 0.187 - 0.25 in |
| Terminal Size | - | 6.35 mm |
| Terminal Size | - | 0.25 in |
| Terminal Type | Standard | Disconnect, Quick Connect, Standard |
| Termination | Crimp | Crimp |
| Wire Gauge [Max] | 13 AWG | 12 - 17 AWG |
| Wire Gauge [Min] | 12 AWG | 10 - 16 AWG |
1377175 Series
CONN MALE TAB HSG 0.25 3POS NAT
| Part | Terminal Size | Terminal Size | Stacking Direction | For Use With/Related Products | For Use With/Related Products | For Use With/Related Products | Gender | Mounting Type | Material | Color | Note | Style | Terminal Type | Number of Positions | Tab Width | Tab Width | Contact Material | Tab Thickness | Tab Thickness | Length - Overall [x] | Length - Overall [x] | Wire Gauge [Min] | Wire Gauge [Max] | Termination | Contact Finish | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Insulation | Tab Length | Tab Length | Length - Overall | Tab Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 4-1377175-6 | 6.35 mm | 0.25 in | Multiple | 0.25 in | Quick Connects | 6.35 mm | Male, Tab | Free Hanging (In-Line) | Nylon | Natural | Contacts Not Included | Housing | Disconnect, Quick Connect | |||||||||||||||||||
TE Connectivity AMP Connectors 4-1377175-3 | 6.35 mm | 0.25 in | 0.25 in | Quick Connects | 6.35 mm | Male, Tab | Free Hanging (In-Line) | Polyamide (PA66), Nylon 6/6 | Natural | Contacts Not Included | Housing | Disconnect, Quick Connect | 1 | |||||||||||||||||||
TE Connectivity AMP Connectors 1-1377175-2 | Female | Free Hanging (In-Line) | Red | Standard | 6.35 mm | 0.25 in | Brass | 0.032 in | 0.81 mm | 21.59 mm | 0.85 " | 16 AWG | 17 AWG | Crimp | Tin | 0.134 in | 3.4 mm | Fully Insulated | ||||||||||||||
TE Connectivity AMP Connectors 3-1377175-3 | Female | Free Hanging (In-Line) | Standard | 6.35 mm | 0.25 in | Brass | 0.032 in | 0.81 mm | 20.09 mm | 0.791 in | 10 AWG | 12 AWG | Crimp | Tin | Non-Insulated | 0.303 in | 7.7 mm | |||||||||||||||
TE Connectivity AMP Connectors 1-1377175-5 | Female | Free Hanging (In-Line) | Blue | Standard | 6.35 mm | 0.25 in | Brass | 0.032 in | 0.81 mm | 12 AWG | 13 AWG | Crimp | Tin | 0.157 in | 3.99 mm | Fully Insulated | ||||||||||||||||
TE Connectivity AMP Connectors 3-1377175-0 | Side to Side | Free Hanging (In-Line) | Polyamide (PA66), Nylon 6/6 | Natural | Contacts Not Included | Housing | 2 | |||||||||||||||||||||||||
TE Connectivity AMP Connectors 4-1377175-4 | 6.35 mm | 0.25 in | Side to Side | 0.25 in | Quick Connects | 6.35 mm | Male, Tab | Free Hanging (In-Line) | Polyamide (PA66), Nylon 6/6 | Natural | Contacts Not Included | Housing | Disconnect, Quick Connect | 2 | ||||||||||||||||||
TE Connectivity AMP Connectors 1-1377175-6 | Female | Free Hanging (In-Line) | Blue | Standard | 6.35 mm | 0.25 in | Brass | 0.032 in | 0.81 mm | Crimp | Tin | 0.157 in | 3.99 mm | Fully Insulated | ||||||||||||||||||
TE Connectivity AMP Connectors 2-1377175-9 | 6.35 mm | 0.25 in | 0.25 in | Quick Connects | 6.35 mm | Female, Receptacle | Free Hanging (In-Line) | Nylon | Natural | Contacts Not Included | Housing | Disconnect, Quick Connect | 1 | |||||||||||||||||||
TE Connectivity AMP Connectors 4-1377175-5 | 6.35 mm | 0.25 in | Perpendicular | 0.25 in | Quick Connects | 6.35 mm | Male, Tab | Free Hanging (In-Line) | Polyamide (PA66), Nylon 6/6 | Natural | Contacts Not Included | Housing | Disconnect, Quick Connect | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.15 | |
| 10 | $ 0.97 | |||
| 25 | $ 0.91 | |||
| 50 | $ 0.87 | |||
| 100 | $ 0.83 | |||
| 300 | $ 0.77 | |||
| 500 | $ 0.74 | |||
| 1000 | $ 0.70 | |||
Description
General part information
1377175 Series
0.250" (6.35mm) Quick Connect Female 12-13 AWG Crimp Connector Fully Insulated
