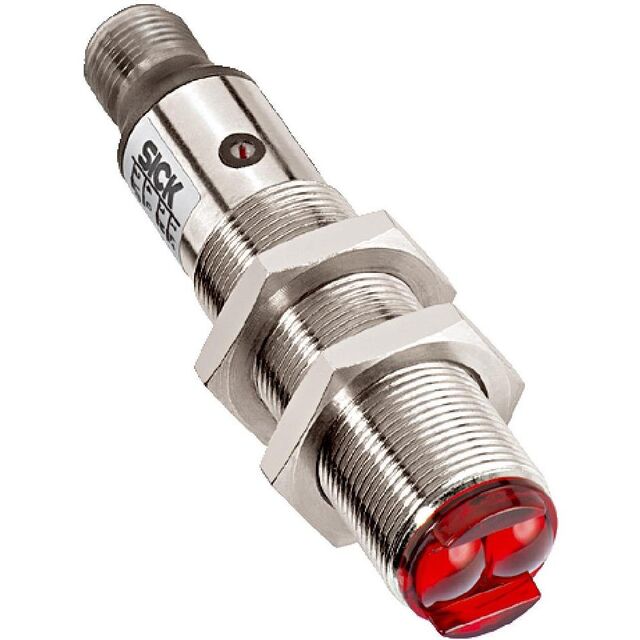

CYLINDRICAL PHOTOELECTRIC SENSOR
6030189
ActiveSICK, Inc.
CYLINDRICAL PHOTOELECTRIC SENSOR
Description
General part information
6030189
Proximity Optical Sensor 0.984" ~ 5.512" (25mm ~ 140mm) PNP - Dark-ON/Light-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | 6030189 |
|---|---|
| Adjustment Angle | 270 ° |
| Adjustment Type | Potentiometer, Adjustable |
| Connection Method | Connector, M12 |
| Ingress Protection | IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 660 nm |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | Light-ON, PNP - Dark-ON |
| Response Time | 500 µs |
| Sensing Distance Maximum | 5.512 " |
| Sensing Distance Minimum | 0.984 " |
| Sensing Method | Proximity |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
