1424176
ActivePhoenix Contact
SENSOR CABLES / ACTUATOR CABLES SAC-3P-20,0- PVC/FSS PE SCO
1424176
ActivePhoenix Contact
SENSOR CABLES / ACTUATOR CABLES SAC-3P-20,0- PVC/FSS PE SCO
Description
General part information
1424176

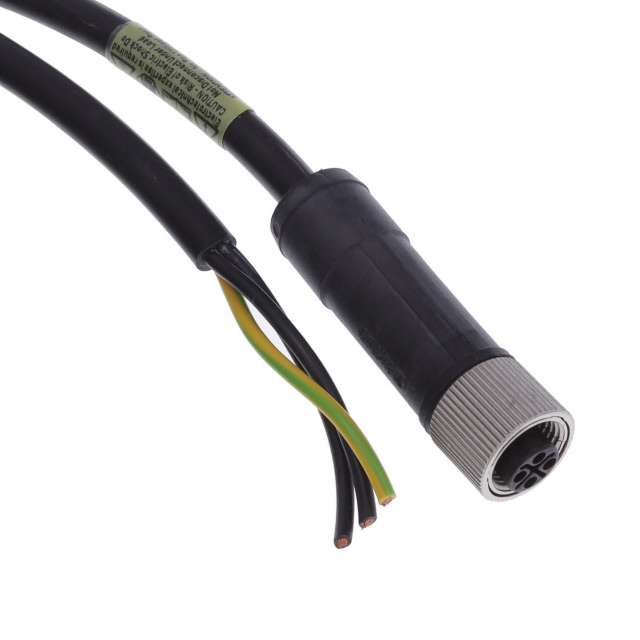

Circular Cable Assembly Unshielded 65.6' (20.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1424176 |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 3 positions |
| 1st Connector Number of Positions (Power) | 2 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | S |
| 1st Connector Position Types | PE |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Plug |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Length | 65.6 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
