FF 375 REC 4-6MM2 TPBR-151667-2

151667-2

Active
TE Connectivity AMP Connectors

.375 SERIES F/F RECPT. ROHS COMPLIANT: YES

Find alt
FF 375 REC 4-6MM2 TPBR-151667-2

151667-2

Active
TE Connectivity AMP Connectors

.375 SERIES F/F RECPT. ROHS COMPLIANT: YES

Find alt

Description

General part information

FASTIN-FASTON 375 Series

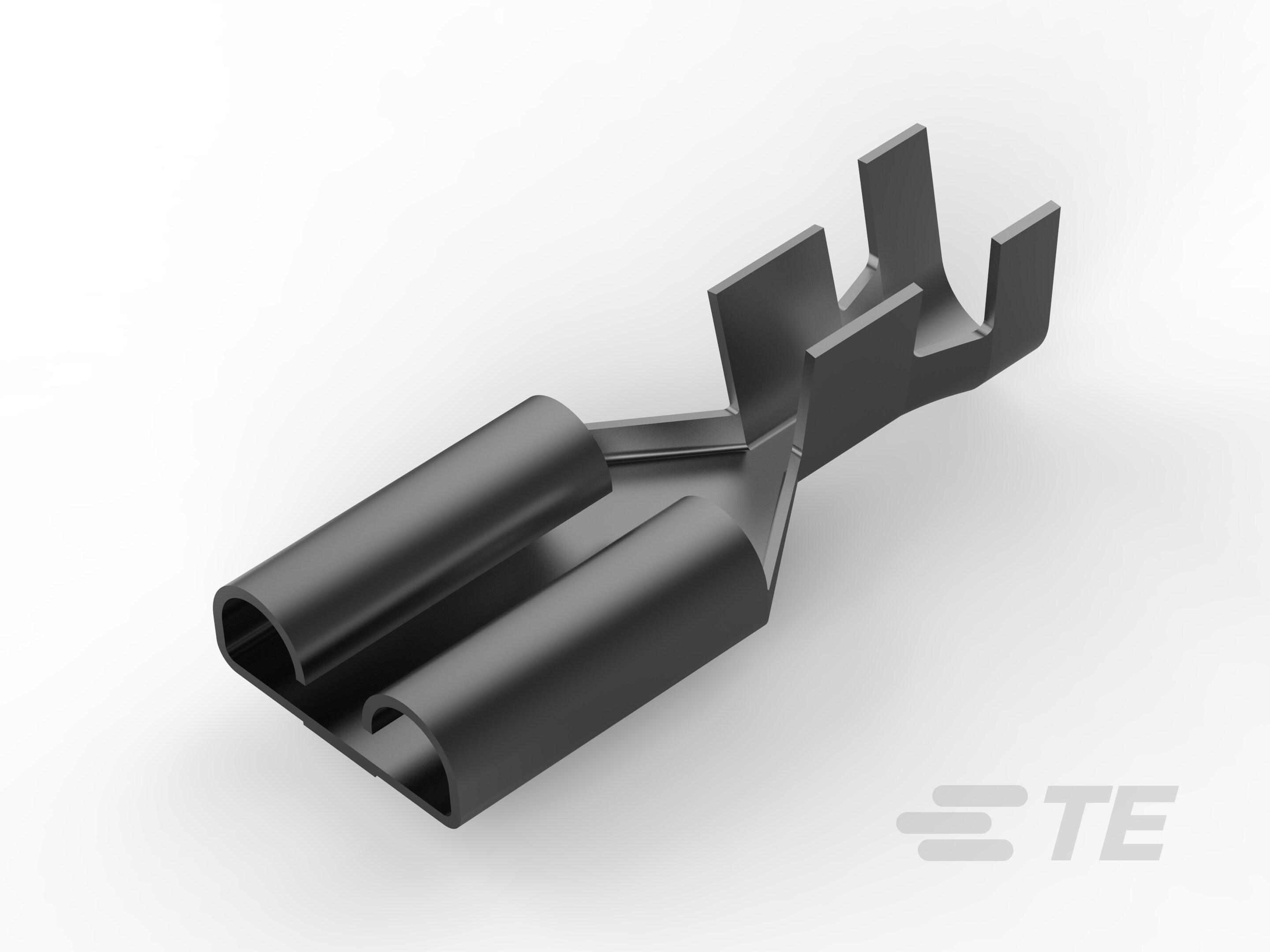

Quick Disconnect Receptacle, 11 – 10 AWG, 4 – 5.2 mm² Wire, 9.53 mm [.375 in] Tab Width, Straight, Brass, Tin Plating, Strip/Reel, FASTIN-FASTON 375

Technical Specifications

Parameters and characteristics for this part

Specification151667-2
Contact FinishTin
Contact MaterialBrass
GenderFemale
InsulationNon-Insulated
Length - Overall1.04 in
Mounting TypeFree Hanging (In-Line)
Tab Length0.47 in
Tab Thickness0.048 in
Tab Width0.375 in
Terminal TypeStandard
TerminationCrimp
Wire Gauge (AWG) (Max)12 AWG
Wire Gauge (AWG) (Min)10 AWG
