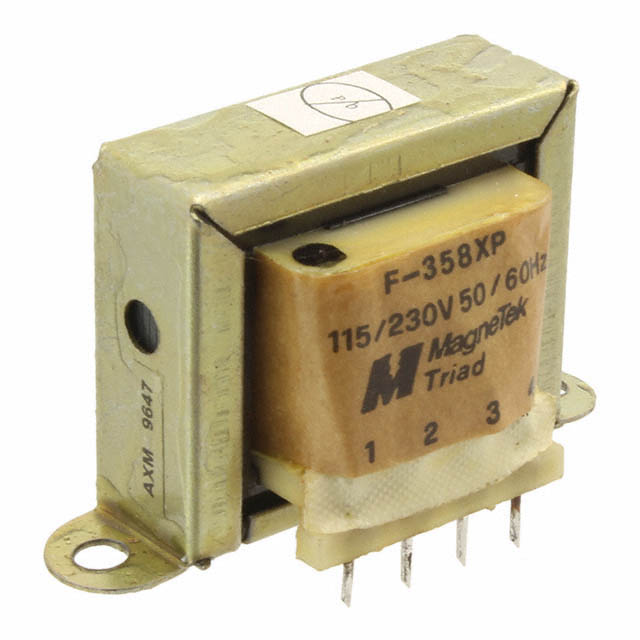

F-358XP

F-358XP

Active
Triad Magnetics

POWER TRANSFORMER 20.0VCT@0.225A 115V/230 PCB MOUNT/F-358XP ROHS COMPLIANT: YES

Find alt
F-358XP

F-358XP

Active
Triad Magnetics

POWER TRANSFORMER 20.0VCT@0.225A 115V/230 PCB MOUNT/F-358XP ROHS COMPLIANT: YES

Find alt

Description

General part information

F-358XP

POWER TRANSFORMER 20.0VCT@0.225A 115V/230 PCB MOUNT/F-358XP ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

SpecificationF-358XP
Center TapNo
Current - Output (Max) Parallel450 mA
Current - Output (Max) Series225 mA
Height - Seated (Max)36.5 mm
Mounting TypeChassis Mount
Power - Max4.5 W
Primary Winding(s)Dual
Secondary Winding(s)Dual
Size / Dimension Length60.32 mm
Size / Dimension Width1.25 in
Termination StylePC Pin
TypeLaminated Core
Voltage - Isolation1500 Vrns
Voltage - Primary230V, 115V
Voltage - Secondary (Full Load) (Parallel)10 V
Voltage - Secondary (Full Load) (Series)20 V
Weight0.407 lb
