100024104
ActiveTelegartner Inc
N JCK STR FLNG SD
100024104
ActiveTelegartner Inc
N JCK STR FLNG SD
Description
General part information
100024104

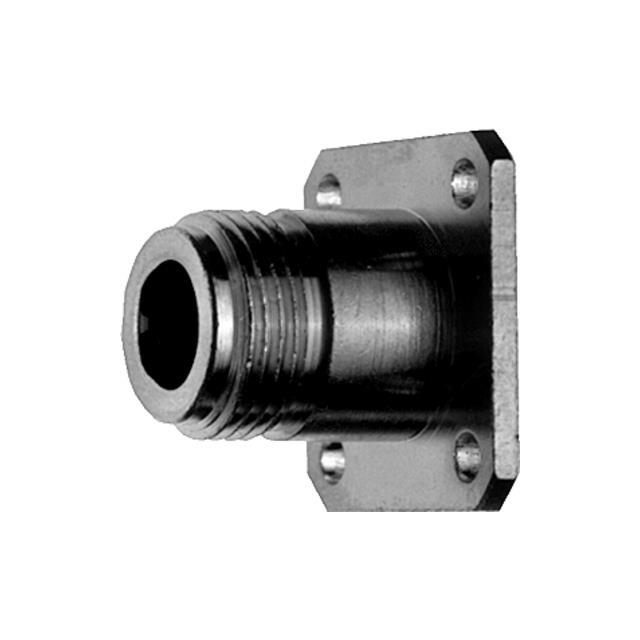

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 100024104 |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Center Contact Material | Copper Alloy |
| Center Contact Plating | Silver |
| Connector Style | N Type |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Voltage Rating | 1000 V |
