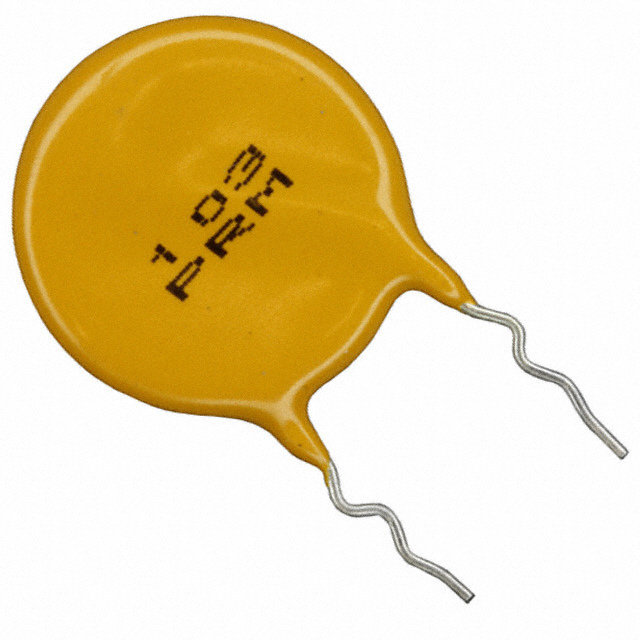

5PR103MUMCE
ObsoleteKYOCERA AVX
CAP CER 10000PF 1KV Y5R RADIAL
5PR103MUMCE
ObsoleteKYOCERA AVX
CAP CER 10000PF 1KV Y5R RADIAL
Description
General part information
5PR103MUMCE
10000 pF ±20% 1000V (1kV) Ceramic Capacitor Y5R Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | 5PR103MUMCE |
|---|---|
| Applications | General Purpose |
| Capacitance | 10000 pF |
| Height - Seated (Max) | 0.276 in |
| Lead Spacing | 0.394 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -30 °C |
| Package / Case | Disc, Radial |
| Size / Dimension Diameter | 0.748 in |
| Temperature Coefficient | Y5R |
| Tolerance | 20 % |
| Voltage - Rated | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
