Description
General part information
ADM-1600

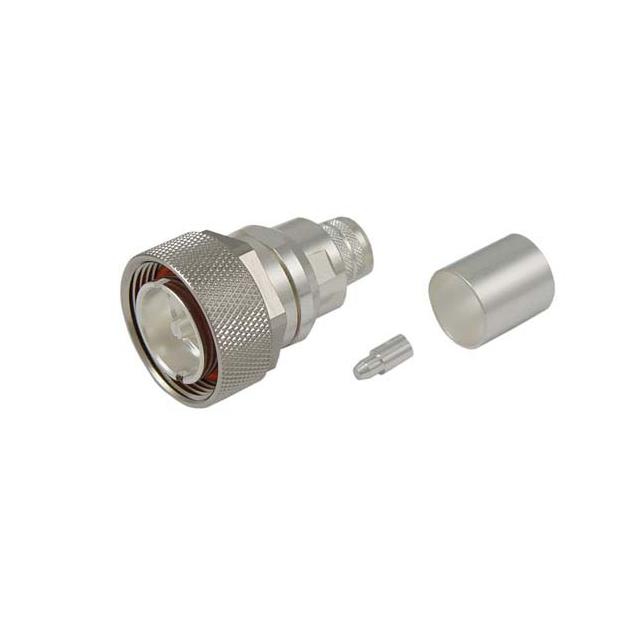

7/16 DIN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | ADM-1600 |
|---|---|
| Body Finish | Silver |
| Body Material | Brass |
| Cable Group | LMR-600 |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Connector Style | 7/16 DIN |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Insertion Loss | 0.2 dB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Voltage Rating | 2700 V |
