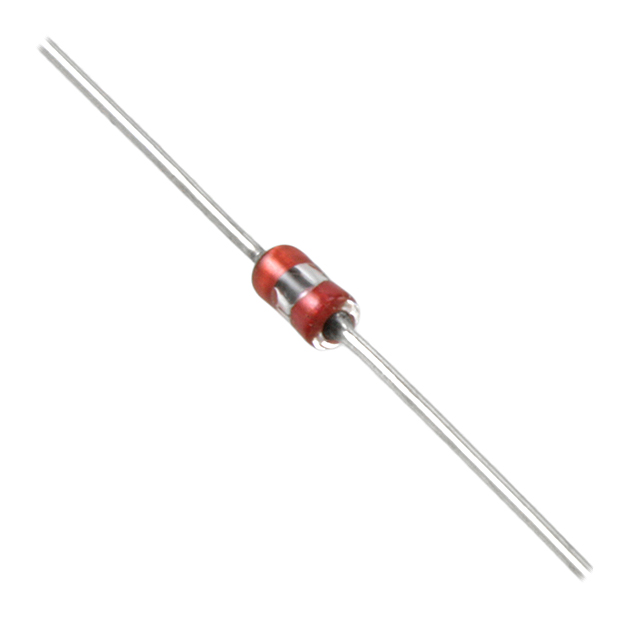

135-104LAF-J01
ActiveHoneywell Sensing and Productivity Solutions
THERM NTC 100KOHM 3974K DO35
Deep-Dive with AI
Search across all available documentation for this part.
135-104LAF-J01
ActiveHoneywell Sensing and Productivity Solutions
THERM NTC 100KOHM 3974K DO35
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 135-104LAF-J01 | 135-104 Series |
|---|---|---|
| B Value Tolerance | 1.3 % | 1.3 - 2.1 % |
| B0/50 | - | 4138 K |
| Length - Lead Wire [x] | 1.13 " | 1.13 " |
| Length - Lead Wire [x] | 28.6 mm | 28.6 mm |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 300 °C | 300 °C |
| Operating Temperature [Min] | -60 °C | -60 °C |
| Package / Case | Axial, DO-35, DO-204AH | Axial, DO-35, DO-204AH |
| Resistance in Ohms @ 25°C | 100k | 100k |
| Resistance Tolerance | 5 % | 5 % |
135-104 Series
THERM NTC 100KOHM 3974K DO35
| Part | Resistance Tolerance | Mounting Type | B Value Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Resistance in Ohms @ 25°C | Length - Lead Wire [x] | Length - Lead Wire [x] | Package / Case | B0/50 |
|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions 135-104LAF-J01 | 5 % | Through Hole | 1.3 % | -60 °C | 300 °C | 100k | 1.13 " | 28.6 mm | Axial, DO-204AH, DO-35 | |
Honeywell Sensing and Productivity Solutions 135-104QAD-J01 | Through Hole | 2.1 % | -60 °C | 300 °C | 100k | 1.13 " | 28.6 mm | Axial, DO-204AH, DO-35 | 4138 K |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.10 | |
| 5 | $ 4.30 | |||
| 10 | $ 3.99 | |||
| 25 | $ 3.62 | |||
| 50 | $ 3.37 | |||
| 100 | $ 3.17 | |||
Description
General part information
135-104 Series
NTC Thermistor 100k DO-204AH, DO-35, Axial
