031-6594
ActiveMcGill Microwave Systems

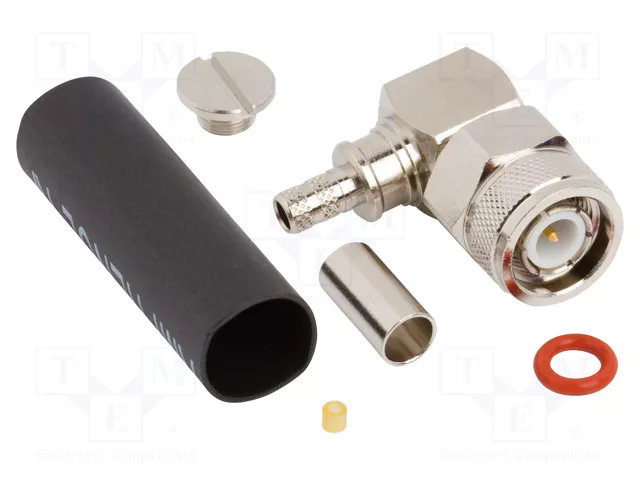

CONNECTOR: TNC; PLUG; MALE; ANGLED 90°; 50Ω; IP67; FOR CABLE; PTFE
031-6594
ActiveMcGill Microwave Systems
CONNECTOR: TNC; PLUG; MALE; ANGLED 90°; 50Ω; IP67; FOR CABLE; PTFE
Description
General part information
031-6594
CONNECTOR: TNC; PLUG; MALE; ANGLED 90°; 50Ω; IP67; FOR CABLE; PTFE
Technical Specifications
Parameters and characteristics for this part
| Specification | 031-6594 |
|---|---|
| Cable Group | LMR-240 |
| Center Contact Material | Brass |
| Connector Style | TNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
