1200680294

Active

Molex

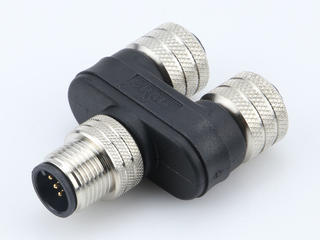

MICRO-CHANGE (M12) IN-LINE SPLITTER, 4 POLE, 1 X 4-POLE MALE (STRAIGHT) TO 2 X 4-POLE FEMALE (STRAIGHT)

Find alt

Alpha

1200680294

Active

Molex

MICRO-CHANGE (M12) IN-LINE SPLITTER, 4 POLE, 1 X 4-POLE MALE (STRAIGHT) TO 2 X 4-POLE FEMALE (STRAIGHT)

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

120068 Series

Micro-Change (M12) In-Line Splitter with Knurled Hexnuts, 4 Pole, 1 x 4-Pole Male (Straight) to 2 x 3-Pole Female (90°), WSOR Cable, 5.0m (16.40') Length

Technical Specifications

Parameters and characteristics for this part

Specification	1200680294

Connector Style	Distributor Y-Shaped
Convert From (Adapter End)	Male Pins
Convert To (Adapter End)	Female Sockets
Convert To (Adapter End) Count	2 count
Current Rating	4 A
Fastening Type	Threaded
Housing Color	Black
Housing Material	Polyurethane, PUR
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	4
Number of Positions (Convert To)	4
Number of Positions (Convert To) Secondary	2
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-25 °C
Orientation (Convert From)	Keyed
Orientation (Convert To)	Keyed
Primary Material	Plastic
Shell Size - Insert (Convert From)	M12
Shell Size - Insert (Convert To)	M12
Shielding	Unshielded
Voltage Rating (AC)	250 VAC
Voltage Rating (DC)	300 VDC

120068 Series

Micro-Change (M12) In-Line Splitter with Knurled Hexnuts, 4 Pole, 1 x 4-Pole Male (Straight) to 2 x 3-Pole Female (90°), WSOR Cable, 5.0m (16.40') Length

...

Part	1st Connector Gender	2nd Connector Number of Positions	Cable Type	Assembly Configuration	2nd Connector Gender	2nd Connector Number of Positions Loaded	2nd Connector Shell Size - Insert (Code)	Ingress Protection Description	Ingress Protection IP Rating	1st Connector Shell Size - Insert	2nd Connector Mounting Type	2nd Connector Type	2nd Connector Count	Length	Usage	1st Connector Type	1st Connector Number of Positions Loaded	1st Connector Number of Positions	Color	Cable Material	1st Connector Mounting Type	Shielding	2nd Connector Number of Positions Loaded	2nd Connector Orientation	1st Connector Orientation
Molex 1200680202	Male Pins	4	Round	Y-Adapter on One End	Female Sockets	3 positions	M12	Dust Tight Waterproof	IP67	M12	Free Hanging (In-Line)	Plug Right Angle	2 pcs	6.56 ft	Industrial Environments	Receptacle	All	4 positions	Yellow	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Unshielded
Molex 1200680221
Molex 1200680214
Molex 1200680020
Molex 1200680094	Male Pins	4	Round	Y-Adapter on One End	Female Sockets		M12	Dust Tight Waterproof	IP67	M12	Free Hanging (In-Line)	Plug	2 pcs	0.66 ft	Industrial Environments	Receptacle	All	4 positions	Yellow	Thermoplastic Elastomer (TPE)	Free Hanging (In-Line)	Unshielded	All
Molex 1200680351	Male Pins				Female Sockets		M12			M12		Plug				Receptacle	All	4 positions		Thermoplastic Elastomer (TPE)				Keyed	Keyed
Molex 1200680206
Molex 1200680193	Male Pins	4	Round	Y-Adapter on One End	Female Sockets	3 positions	M12	Dust Tight Waterproof	IP67	M12	Free Hanging (In-Line)	Plug	2 pcs	9.84 ft	Industrial Environments	Receptacle	All	4 positions	Yellow	Thermoplastic Elastomer (TPE)	Free Hanging (In-Line)	Unshielded
Molex 1200680108
Molex 1200680194	Male Pins	4	Round	Y-Adapter on One End	Female Sockets	3 positions	M12	Dust Tight Waterproof	IP67	M12	Free Hanging (In-Line)	Plug	2 pcs	13.12 ft	Industrial Environments	Receptacle	All	4 positions	Yellow	Thermoplastic Elastomer (TPE)	Free Hanging (In-Line)	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Drawing

1200680294 | Datasheet

Product Change Notice EN

Datasheet
