SS-69000-001
ActiveBel Fuse Inc.
MODULAR CONNECTOR, SPE JACK, 1 X 1 (PORT), 2P2C, THROUGH HOLE MOUNT
SS-69000-001
ActiveBel Fuse Inc.
MODULAR CONNECTOR, SPE JACK, 1 X 1 (PORT), 2P2C, THROUGH HOLE MOUNT
Description
General part information
SS-69000-001

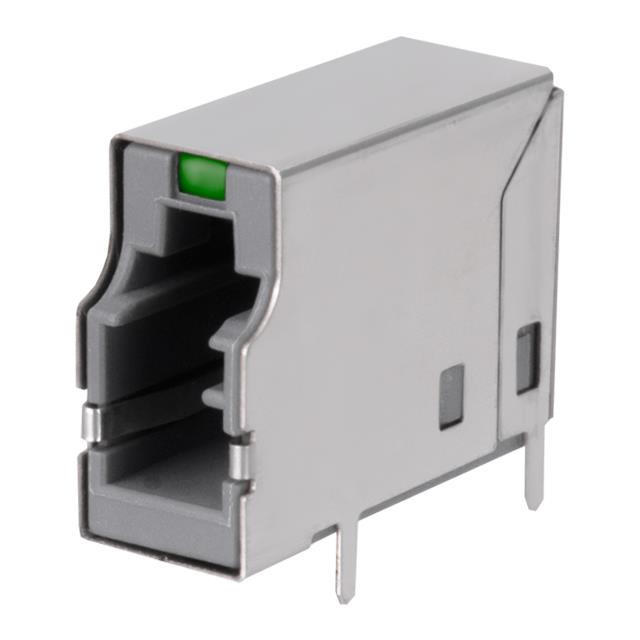

Jack Modular Connector 2P2C Single Pair Ethernet (SPE) 90° Angle (Right) Shielded
Technical Specifications
Parameters and characteristics for this part
| Specification | SS-69000-001 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Copper Alloy |
| Housing Material | PBT, Polybutylene Terephthalate |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Number of Positions/Contacts | Single Pair Ethernet (SPE), 2P2C |
| Number of Rows | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Orientation Angle | 90 ° |
| Orientation Direction | Right |
| Shielding | Shielded |
| Tab Direction | Up |
| Termination | Solder |
