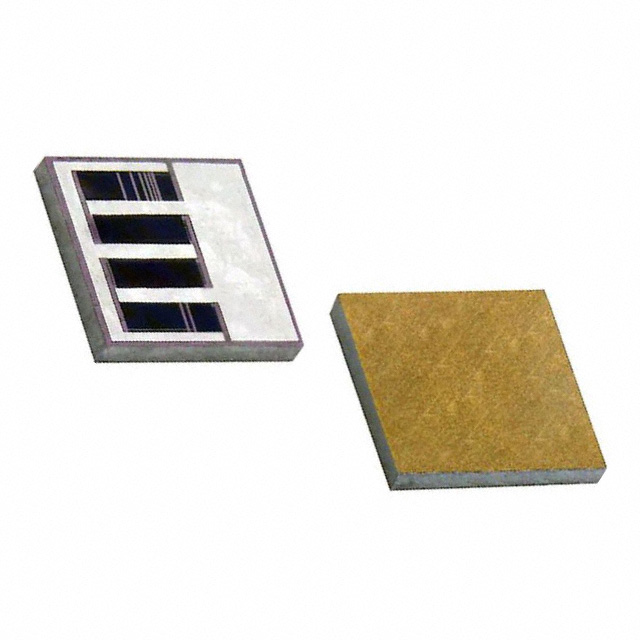

IGBRB5000CJANCT5

IGBRC5000CJJNCT5

Active
Vishay Dale

RES BACK CONTACT NI 5 OHM 5% 500

Find alt
IGBRB5000CJANCT5

IGBRC5000CJJNCT5

Active
Vishay Dale

RES BACK CONTACT NI 5 OHM 5% 500

Find alt

Description

General part information

IGBRC5000CJJNCT5

5 Ohms ±5% 3W Chip Resistor Nonstandard Bonding Mountable, Moisture Resistant Thin Film

Technical Specifications

Parameters and characteristics for this part

SpecificationIGBRC5000CJJNCT5
CompositionThin Film
FeaturesBonding Mountable, Moisture Resistant
Height - Seated (Max)0.012 in
Number of Terminations2
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
Package / CaseNonstandard
Package Name0606
Power (Watts)3 W
Resistance5 Ohm
Size / Dimension Length0.059 in
Size / Dimension Width0.059 in
Temperature Coefficient500 ppm/°C
Tolerance5 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
