Description
General part information
289-585

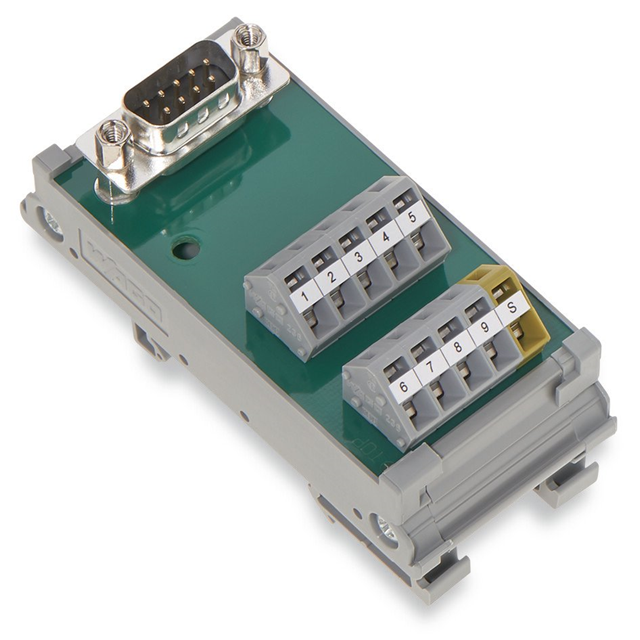

9 Position Interface Module Terminal Blocks - Screw Connection To D-Sub, Male 12-28 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 289-585 |
|---|---|
| Control Side Cable Retainer Type | Jackscrew Socket |
| Control Side Connection Gender | Male |
| Control Side Connection Shape | D-Sub |
| Current Rating (Per Contact) | 2 A |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -20 °C |
| Positions / Poles | 9 |
| Process Side Connection | Terminal Blocks, Screw Connection |
| Voltage - Rated | 125 VAC |
| Width | 1.516 in |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
