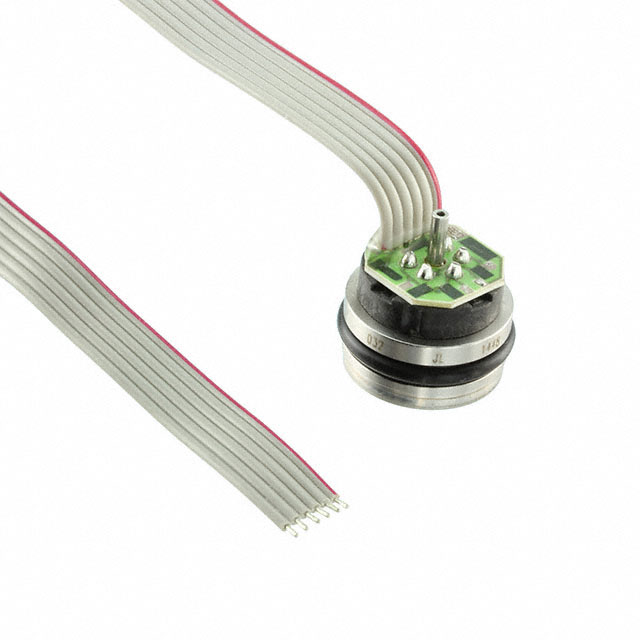

Specification	86-050G-RT

Accuracy	0.1 % RH
Applications	Board Mount
Features	Temperature Compensated
Maximum Pressure	150 PSI
Operating Pressure	50 PSI
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Output Type	Wheatstone Bridge
Output Voltage (Max)	100 mV
Output Voltage (Min)	0 V
Package / Case	Cylinder
Port Style	No Port
Pressure Type	Vented Gauge
Termination Style	Cable with Connector

MEAS 86 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Operating Pressure	Output Voltage (Max)	Output Voltage (Min)	Pressure Type	Termination Style	Accuracy	Package / Case	Port Style	Applications	Maximum Pressure	Features	Output Type	Output Bits	Port Feature	Mounting Type	Voltage - Supply	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)
TE Connectivity AMP Connectors 86BSD300PA-3ASC
TE Connectivity AMP Connectors 86-005G-RT	70 °C	-20 °C	5 PSI	100 mV	0 V	Vented Gauge	Cable with Connector	0.2 %	Cylinder	No Port	Board Mount	15 PSI	Temperature Compensated	Wheatstone Bridge
TE Connectivity AMP Connectors 86BSD300PA-3AIR	125 °C	-40 °C	300 PSI			Absolute	Wire Leads	0.25 %	Module	No Port	Board Mount	600 PSI	Temperature Compensated	I2C	14 b	Cell O-Ring w/Body	Chassis Mount	3.3 V
TE Connectivity AMP Connectors 86-015A-R	125 °C	-40 °C	15 PSI	100 mV	0 V	Absolute	Cable with Connector	0.1 % RH	Cylinder	No Port	Board Mount	45 PSI	Temperature Compensated	Wheatstone Bridge
TE Connectivity AMP Connectors 86-005A-C	70 °C	-20 °C	5 PSI	100 mV	0 V	Absolute	Cable with Connector	0.2 %	Cylinder	No Port	Board Mount	15 PSI	Temperature Compensated	Wheatstone Bridge
TE Connectivity AMP Connectors 86BSD300PG-3ASC
TE Connectivity AMP Connectors 86A3R-000000-100PG	85 °C	-20 °C	100 PSI	4.5 V	0.5 V	Vented Gauge	Cable with Connector	1 %	Module	No Port	Board Mount	300 PSI	Amplified Output Temperature Compensated	Analog Voltage					5.25 V	4.75 V
TE Connectivity AMP Connectors 86BSD015PG-3AIC	125 °C	-40 °C	15 PSI			Vented Gauge	Cable with Connector	0.25 %	Module	No Port	Board Mount	30 PSI	Amplified Output Temperature Compensated	I2C SPI	14 b			3.3 V
TE Connectivity AMP Connectors 86-100G-RT	125 °C	-40 °C	100 PSI	100 mV	0 V	Vented Gauge	Cable with Connector	0.1 % RH	Cylinder	No Port	Board Mount	300 PSI	Temperature Compensated	Wheatstone Bridge
TE Connectivity AMP Connectors 86-030A-C	125 °C	-40 °C	30 PSI	100 mV	0 V	Absolute	Cable with Connector	0.1 % RH	Cylinder	No Port	Board Mount	90 PSI	Temperature Compensated	Wheatstone Bridge
