SFR2500005604JR500
ActiveVishay Dale
RES 5.6M OHM 0.4W 5% AXIAL
SFR2500005604JR500
ActiveVishay Dale
RES 5.6M OHM 0.4W 5% AXIAL
Description
General part information
SFR2500005604JR500

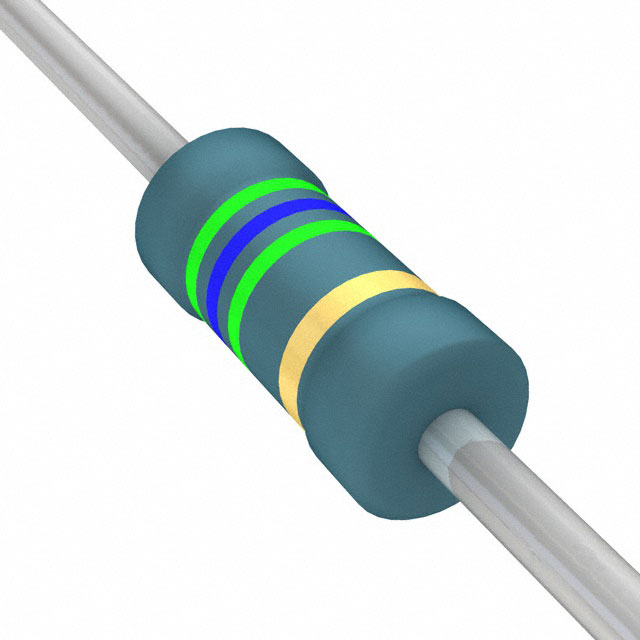

5.6 MOhms ±5% 0.4W Through Hole Resistor Axial Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | SFR2500005604JR500 |
|---|---|
| Composition | Metal Film |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 0.4 W |
| Resistance | 5.6 MOhm |
| Size / Dimension Diameter | 0.098 in |
| Size / Dimension Length | 0.256 in |
| Temperature Coefficient | 250 ppm/°C |
| Temperature Coefficient (Highest) | 250 ppm/°C |
| Temperature Coefficient (Lowest) | -250 ppm/°C |
| Tolerance | 5 % |
