Description
General part information

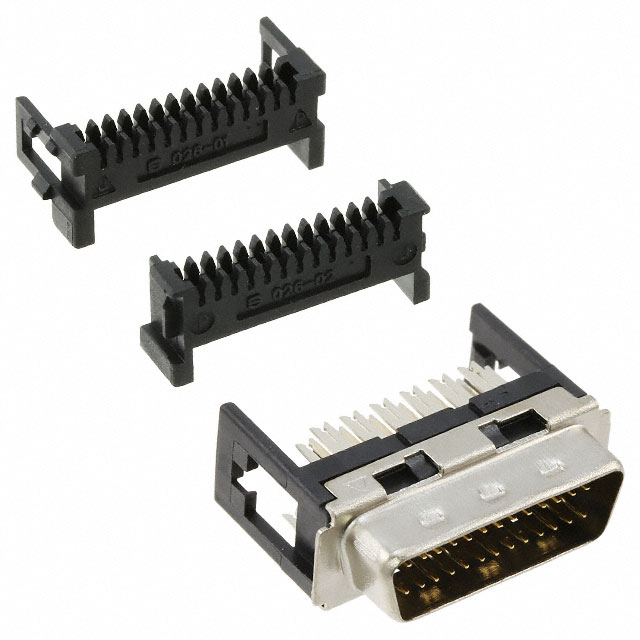

60030265200
26 Position D-Type Plug, Male Pins Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 60030265200 |
|---|---|
| Connector Layout Pitch | 0.05 |
| Connector Layout Row to Row | 0.1 |
| Connector Style | D-Type |
| Connector Type | Male Pins, Plug |
| Contact Type | Signal |
| Current Rating | 1 A |
| Dielectric Material | Thermoplastic, Glass Filled |
| Features | Grounding Indents |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Termination | IDC, Discrete Wire |
| Voltage Rating | 240 V |
