NSYTBS191210HT
ActiveSCHNEIDER ELECTRIC
BOX ABS GRY /CL 7.56"L X 4.76"W
NSYTBS191210HT
ActiveSCHNEIDER ELECTRIC
BOX ABS GRY /CL 7.56"L X 4.76"W
Description
General part information
NSYTBS191210HT

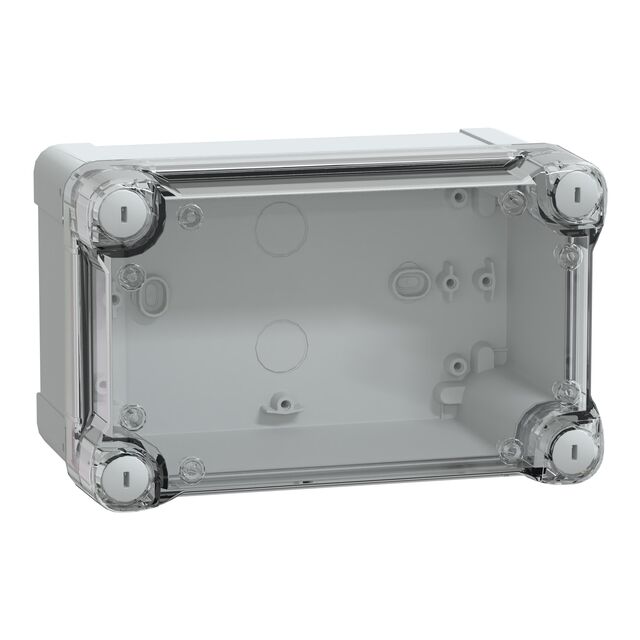

Box Plastic, ABS Light Gray, Clear Cover/Door Cover Included 7.559" L x 4.764" W (192.00mm x 121.00mm) X 4.134" (105.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | NSYTBS191210HT |
|---|---|
| Area (L x W) | 35.9 in² |
| Color | Light Gray, Clear Cover/Door |
| Container Type | Box |
| Design | Cover Included |
| Height | 4.134 in |
| Material | ABS, Plastic |
| Ratings | IP66 |
| Size / Dimension Length | 7.559 in |
| Size / Dimension Width | 4.764 in |
| Thickness | 0.335 in |
