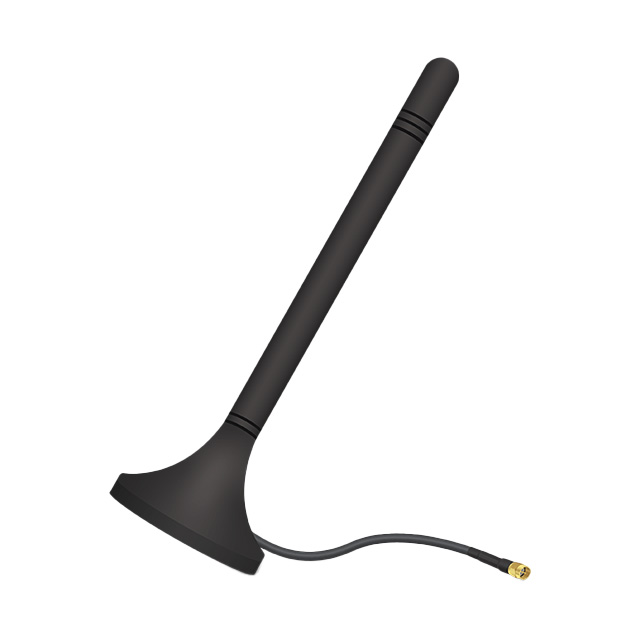

X9001248-4GMSMB3000L
ActiveKYOCERA AVX
4G/CELLULAR MAGNET MOUNT EXTERNA
X9001248-4GMSMB3000L
ActiveKYOCERA AVX
4G/CELLULAR MAGNET MOUNT EXTERNA
Description
General part information
X9001248-4GMSMB3000L
RF ANTENNA 2G, 3G, LoRa, LTE Cat 1, LTE-M, M2M, NB-IoT, SigFox Whip, Straight SMA Male Magnetic
Technical Specifications
Parameters and characteristics for this part
| Specification | X9001248-4GMSMB3000L |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | LoRa, LTE-M, LTE Cat 1, NB-IoT, 2G, Sigfox, M2M, 3G |
| Features | Cable, 3m |
| Frequency (Band) | 2.2 GHz |
| Frequency (Center) | 829 MHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 698 MHz |
| Frequency Range (Band 2) Maximum | 2.69 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Gain | -0.2 dBi, -0.5 dBi |
| Height (Max) | 3.228 in |
| Ingress Protection | IP65 |
| Mounting Type | Magnetic |
| Number of Bands | 2 |
| Return Loss | -5.8dB, -5.2dB |
| Return Loss | -5.8 dB, -5.2 dB |
| RF Family/Standard | Cellular |
| Termination Type | SMA Male |
