Description
General part information

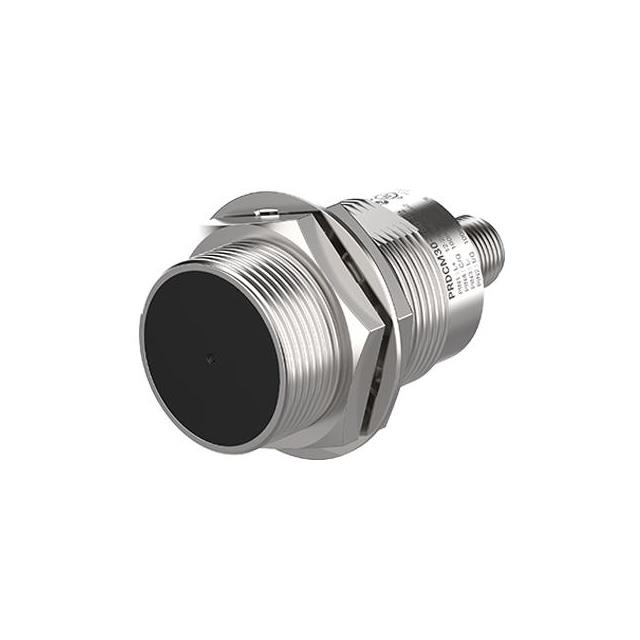

PRDCM30-15D-IL2
SENSOR PROX INDUCT 15MM IO-LINK
Technical Specifications
Parameters and characteristics for this part
| Specification | PRDCM30-15D-IL2 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | 4-Wire, IO-Link |
| Package / Case | Cylinder, Threaded - M30 |
| Response Frequency | 100 Hz |
| Sensing Distance | 0.591 " |
| Sensor Type | Inductive |
| Shielding | Shielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
