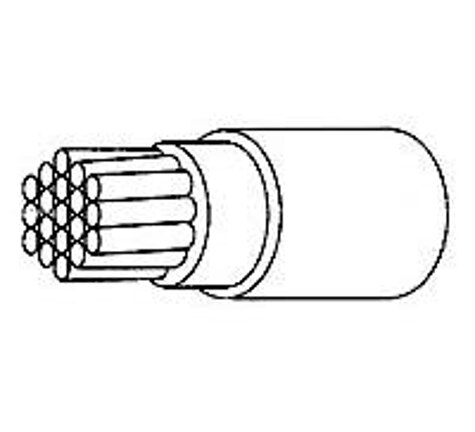

Specification	9437153001

Cable Type	Up, Hook, Dual Wall
Conductor Material	Tinned, Copper
Conductor Strand Count	37
Conductor Strand Diameter	0.0098 in
Jacket (Insulation) Diameter	0.091 in
Jacket (Insulation) Material	Polymer
Jacket (Insulation) Thickness	0.01 in
Jacket Color	Blue
Length	1640.4 ft
Length	Enter Number of Feet in Order Quantity
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Spool Size	1640.4 ft
Voltage	1300 V
Wire Gauge	14 AWG

100G0111 Series

Part	Length	Operating Temperature	Length	Cable Type	Jacket (Insulation) Material	Jacket (Insulation) Diameter	Wire Gauge	Jacket Color	Jacket (Insulation) Thickness	Voltage (Min)	Voltage (Max)	Conductor Strand Diameter	Conductor Strand Count	Conductor Material
TE Connectivity AMP Connectors 100G0111-3.00-0	Enter Number of Feet in Order Quantity	125 °C	3281 ft	Dual Wall Hook Up	Polymer	0.109 in	12 AWG	Black	0.01 in	750 V	1300 V	0.0126 in	37	Copper Tinned
TE Connectivity AMP Connectors 100G0111-0.60-9
TE Connectivity AMP Connectors 100G0111-2.50-8
TE Connectivity AMP Connectors 100G0111-0.50-9	Enter Number of Feet in Order Quantity	125 °C		Hook-Up		0.055 in		White	0.008 in	750 V	1300 V	0.0071 in	19	Copper Tinned
TE Connectivity AMP Connectors 100G0111-0.50-0	Enter Number of Feet in Order Quantity	125 °C	4921.3 ft	Hook-Up	Polymer	0.055 in		Black	0.008 in	750 V	1300 V	0.0071 in	19	Copper Tinned
TE Connectivity AMP Connectors 100G0111-1.00-2		125 °C	3281 ft	Dual Wall Hook Up	Polymer	0.069 in	18 AWG	Red	0.008 in	750 V	1300 V	0.0098 in	19	Copper Tinned
TE Connectivity AMP Connectors 100G0111-1.50-6		125 °C	3281 ft	Dual Wall Hook Up	Polymer	0.082 in	15 AWG	Blue	0.008 in	750 V	1300 V	0.0098 in	37	Copper Tinned
TE Connectivity AMP Connectors 100G0111-2.50-9
TE Connectivity AMP Connectors 100G0111-1.00-9	Enter Number of Feet in Order Quantity	125 °C		Dual Wall Hook Up	Polymer	0.069 in	18 AWG	White	0.008 in	750 V	1300 V	0.0098 in	19	Copper Tinned
TE Connectivity AMP Connectors 100G0111-0.50-45		125 °C		Hook-Up		0.055 in		Green Yellow	0.008 in	750 V	1300 V	0.0071 in	19	Copper Tinned
