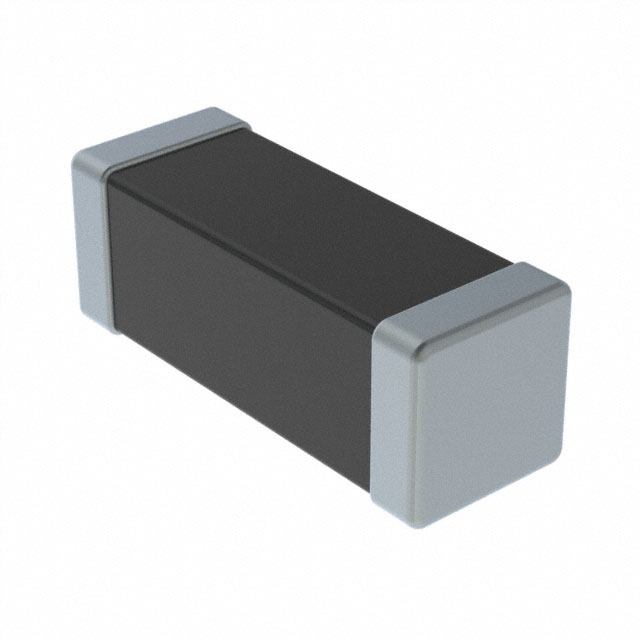

FBMJ4516HM560NT
ActiveTaiyo Yuden
FERRITE BEAD, 1806 [4516 METRIC], 56 OHM, 6 A, FB SERIES, 0.007 OHM, ± 30%
FBMJ4516HM560NT
ActiveTaiyo Yuden
FERRITE BEAD, 1806 [4516 METRIC], 56 OHM, 6 A, FB SERIES, 0.007 OHM, ± 30%
Description
General part information
FBMJ4516HM560NT
56 Ohms @ 100 MHz 1 Power Line Ferrite Bead 1806 (4516 Metric) 6A 7mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | FBMJ4516HM560NT |
|---|---|
| Current Rating (Max) | 6 A |
| DC Resistance (DCR) (Max) | 7 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.051 in |
| Impedance | 56 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1806 (4516 Metric) |
| Size / Dimension Length | 0.177 in |
| Size / Dimension Width | 0.063 in |
