036000 08-1
ActiveLumberg Inc

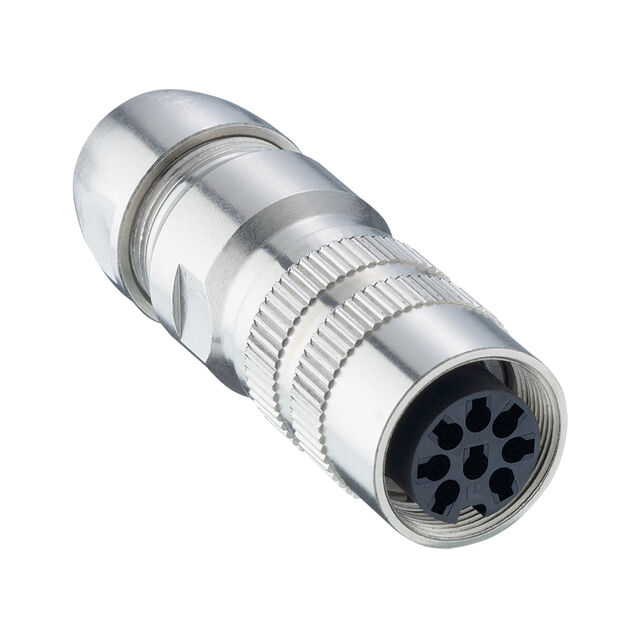

AISG SOCKET CABLEMOUNT CRIMP 8P
036000 08-1
ActiveLumberg Inc
AISG SOCKET CABLEMOUNT CRIMP 8P
Description
General part information
036000 08-1
8 Position Circular Connector Plug, Female Sockets Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 036000 08-1 |
|---|---|
| Color | Silver |
| Connector Type | Plug Housing, Female Sockets, Plug |
| Contact Finish - Mating | Silver, Gold |
| Contact Type | Crimp |
| Fastening Type | Threaded |
| Features | AISG, Quick Assemble, AISG/Quick Assemble |
| Housing Color | Silver |
| Ingress Protection | IP68 |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP68 |
| Material Flammability Rating | UL94 V-0, UL94 |
| Mounting Type | Free Hanging (In-Line), Cable Mount |
| Number of Positions | 8 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M16 |
| Shielding | Shielded |
| Termination | Crimp |
| Type | For Female Sockets |
