FMHR0206-60
ActiveFairview Microwave
CBL ASSY TNCPLUG-TNCPLUG 60
FMHR0206-60
ActiveFairview Microwave
CBL ASSY TNCPLUG-TNCPLUG 60
Description
General part information
FMHR0206-60

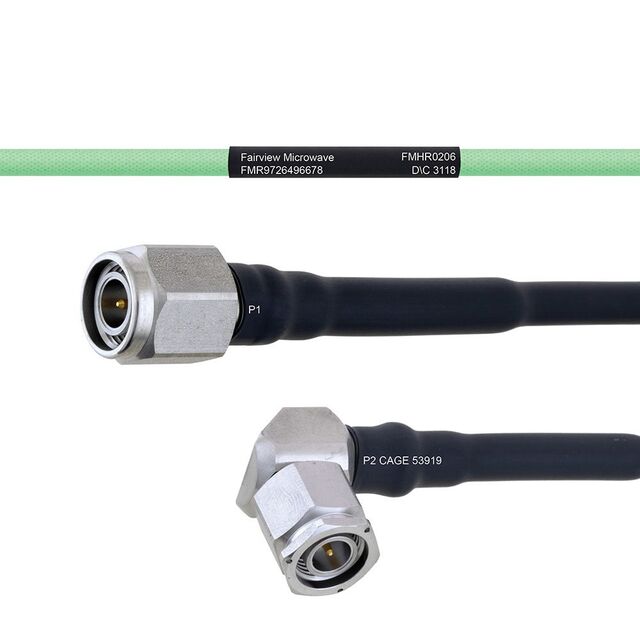

Cable Assembly Coaxial TNC to TNC LL160 60.0" (1.5m) 5.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMHR0206-60 |
|---|---|
| 1st Connector | TNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, TNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LL160 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 1524 mm |
| Length (ft) | 5 ft |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | TNC |
