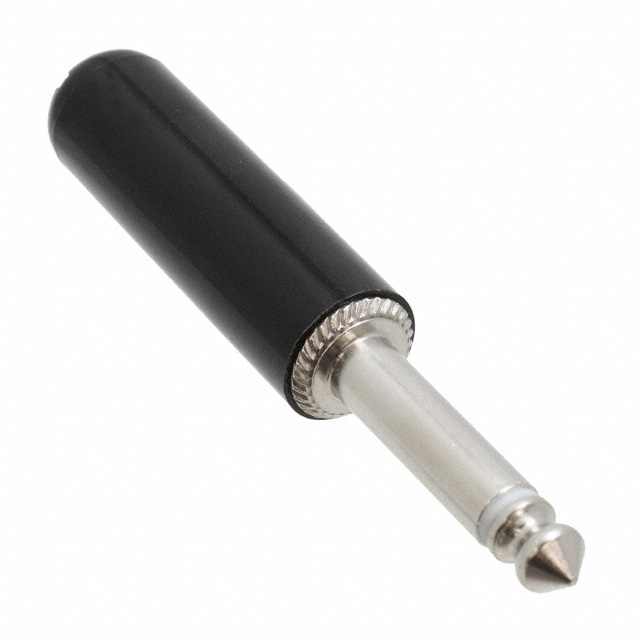

350X
ActiveSWITCHCRAFT/CONXALL
CONN PLUG MONO 6.35MM 2COND
350X
ActiveSWITCHCRAFT/CONXALL
CONN PLUG MONO 6.35MM 2COND
Description
General part information
350X
6.35mm (0.250", 1/4") - Headphone Phone Plug Mono Connector Solder Eyelet(s)
Technical Specifications
Parameters and characteristics for this part
| Specification | 350X |
|---|---|
| Actual Diameter | 0.25 in |
| Body Color | Black |
| Body Material | Copper Alloy |
| Cable Opening | 0.297 in |
| Connector Type | Phone Plug |
| Contact Material | Brass |
| Contact Material - Plating | Tin |
| Gender | Male |
| Housing Material | Plastic |
| Industry Recognized Mating Diameter (Headphone) | 6.35 mm |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 1.188 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 2 Conductors |
| Number of Contacts | 2 Contacts |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder Eyelet(s) |
