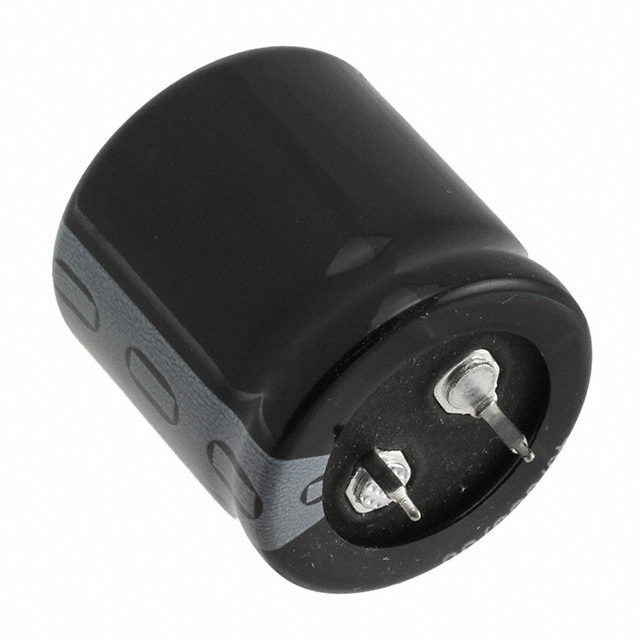

B41231C9228M002
ActiveEPCOS - TDK Electronics
CAP ALUM 2200UF 20% 100V SNAP TH
B41231C9228M002
ActiveEPCOS - TDK Electronics
CAP ALUM 2200UF 20% 100V SNAP TH
Description
General part information
B41231C9228M002
2200 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 3 Lead 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | B41231C9228M002 |
|---|---|
| Applications | General Purpose |
| Capacitance | 2200 ĄF |
| Height - Seated (Max) | 1.26 in |
| Lead Spacing | 0.394 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 3 Leads |
| Package Name | Radial, Can - Snap-In |
| Polarization | Polar |
| Ripple Current | 3.66 A |
| Size / Dimension Diameter | 1.181 in |
| Tolerance | 20 % |
| Voltage - Rated | 100 VAC/DC |
