1-794107-1

Active

TE Connectivity AMP Connectors

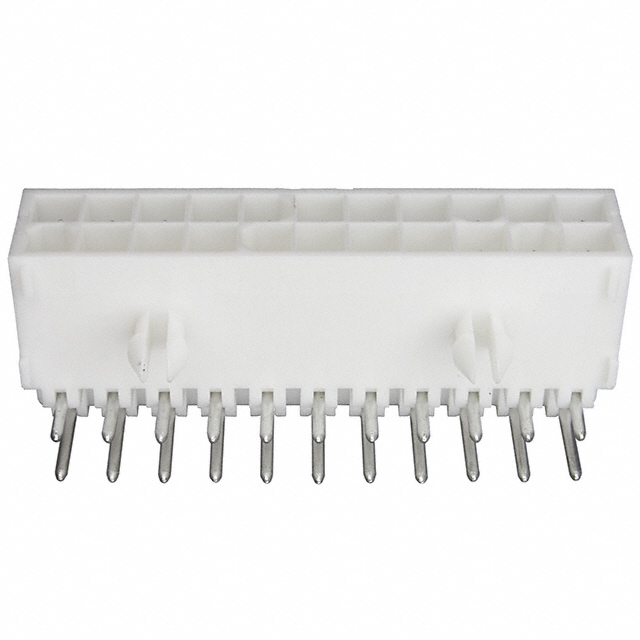

CONN HEADER R/A 22POS 4.14MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 22POS 4.14MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-794107-1	794107 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold, Tin-Lead
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 - 150 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 - 3.81 Ám
Contact Finish Thickness - Post	150 Áin	150 Áin
Contact Finish Thickness - Post	3.81 Ám	3.81 Ám
Contact Length - Post	0.145 in	0.145 in
Contact Length - Post	3.68 mm	3.68 mm
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	9.8 mm	9.8 mm
Insulation Height	0.386 in	0.386 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	22 positions	22 positions
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	85 - 105 ░C
Operating Temperature [Min]	-20 C	-20 C
Pitch - Mating	4.14 mm	4.14 mm
Pitch - Mating	0.163 in	0.163 in
Row Spacing - Mating	4.14 mm	4.14 mm
Row Spacing - Mating	0.163 in	0.163 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

CONN HEADER R/A 22POS 4.14MM

Part	Mounting Type	Number of Rows	Material Flammability Rating	Style	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Termination	Insulation Color	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Type	Insulation Height	Insulation Height	Shrouding	Applications	Number of Positions Loaded	Connector Type	Contact Finish - Mating	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Shape	Insulation Material	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)
TE Connectivity AMP Connectors 1-794107-1	Through Hole, Right Angle	2	UL94 V-0	Board to Cable/Wire	4.14 mm	0.163 in	Locking Ramp	Solder	White	Tin	-20 C	105 ░C	Brass	Male Pin	9.8 mm	0.386 in	Shrouded - 4 Wall	General Purpose	All	Header	Gold	22 positions	4.14 mm	0.163 in	30 Áin	0.76 Ám	0.145 in	3.68 mm	Circular	Nylon, Polyamide (PA)	600 VAC	150 Áin	3.81 Ám	Varies by Wire Gauge
TE Connectivity AMP Connectors 794107-1	Through Hole, Right Angle	2	UL94 V-0	Board to Cable/Wire	4.14 mm	0.163 in	Locking Ramp	Solder	White	Tin-Lead	-20 C	85 °C	Brass	Male Pin	9.8 mm	0.386 in	Shrouded - 4 Wall	General Purpose	All	Header	Tin-Lead	22 positions	4.14 mm	0.163 in	150 Áin	3.81 Ám	0.145 in	3.68 mm	Circular	Nylon, Polyamide (PA)	600 VAC	150 Áin	3.81 Ám	Varies by Wire Gauge

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	400	$ 16.52

General part information

Connector Header Through Hole, Right Angle 22 position 0.163" (4.14mm)
