Description
General part information

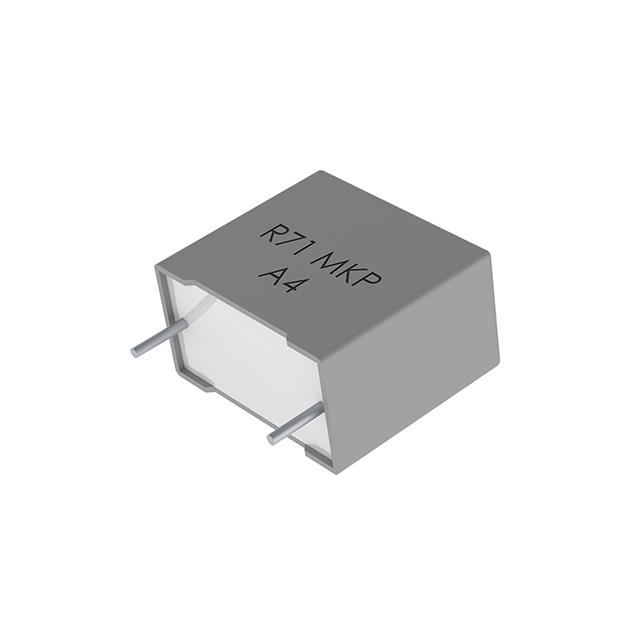

R71QR3470GY10K
0.47 µF Film Capacitor 275V 1000V (1kV) Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | R71QR3470GY10K |
|---|---|
| Applications | Switching, High Frequency, High Pulse, Power Factor Correction (PFC), DV/DT |
| Capacitance | 0.47 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 254 mOhm |
| Height - Seated (Max) | 0.673 in |
| Lead Spacing | 1.083 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Size / Dimension Length | 1.26 in |
| Size / Dimension Width | 0.354 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 275 VAC |
| Voltage Rating - DC | 1 kV |
