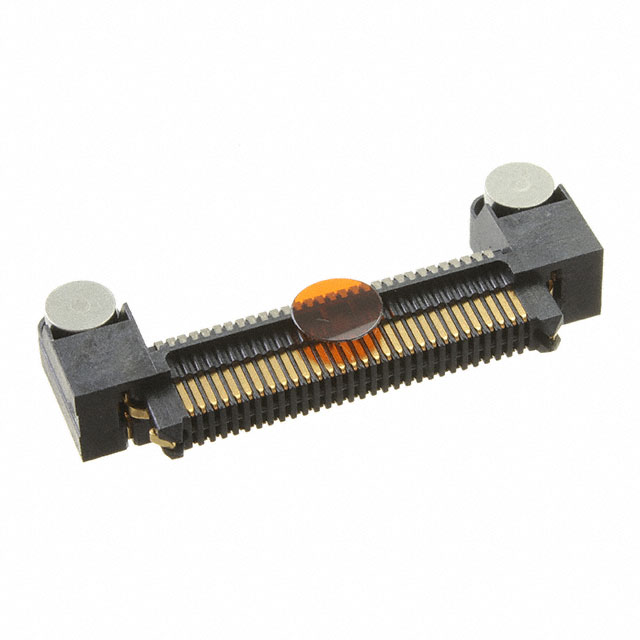

ERM8-030-01-L-D-RA-L-K-TR

Active

Samtec Inc.

MEZZANINE CONNECTOR, HEADER, 0.8 MM, 2 ROWS, 60 CONTACTS, SURFACE MOUNT RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsOne Page Summary EN 0.80 mm Edge Rate® Rugged High Speed Terminal, Right-Angle +3

ERM8-030-01-L-D-RA-L-K-TR

Active

Samtec Inc.

MEZZANINE CONNECTOR, HEADER, 0.8 MM, 2 ROWS, 60 CONTACTS, SURFACE MOUNT RIGHT ANGLE

Deep-Dive with AI

DocumentsOne Page Summary EN 0.80 mm Edge Rate® Rugged High Speed Terminal, Right-Angle +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERM8-030-01-L-D-RA-L-K-TR

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Mounting Flange, Board Guide, Latches
Height Above Board	6.25 mm
Height Above Board	0.246 in
Mounting Type	Surface Mount, Right Angle
Number of Positions	60
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERM8-030 Series

Part	Contact Finish	Features	Connector Type	Height Above Board	Height Above Board	Mounting Type	Number of Rows	Mated Stacking Heights	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]
Samtec Inc. ERM8-030-02.0-L-DV-K-TR	Gold	Board Guide Pick and Place	Header Center Strip Contacts	5.97 mm	0.235 in	Surface Mount	2	7 mm 9 mm 12 mm	60	10 Áin	0.25 Ám	0.8 mm	0.031 in
Samtec Inc. ERM8-030-05.0-S-DV-K-TR	Gold	Board Guide Pick and Place	Header Center Strip Contacts	8.91 mm	0.351 in	Surface Mount	2	10 mm 12 mm 15 mm	60	30 Áin	0.76 Ám	0.8 mm	0.031 in
Samtec Inc. ERM8-030-02.0-L-DV-P-TR	Gold	Board Guide Pick and Place	Header Center Strip Contacts	5.97 mm	0.235 in	Surface Mount	2	7 mm 9 mm 12 mm	60	10 Áin	0.25 Ám	0.8 mm	0.031 in
Samtec Inc. ERM8-030-02.0-S-DV	Gold	Board Guide	Header Center Strip Contacts	5.97 mm	0.235 in	Surface Mount	2	7 mm 9 mm 12 mm	60	30 Áin	0.76 Ám	0.8 mm	0.031 in
Samtec Inc. ERM8-030-08.0-L-DV-K-TR	Gold	Board Guide Pick and Place	Header Center Strip Contacts	8.91 mm	0.351 in	Surface Mount	2	10 mm 12 mm 15 mm	60	10 Áin	0.25 Ám	0.8 mm	0.031 in
Samtec Inc. ERM8-030-05.0-L-DV-EGP-K-TR	Gold	Board Guide Mating Guide Pick and Place	Header Center Strip Contacts	8.91 mm	0.351 in	Surface Mount	2	10 mm 12 mm 15 mm	60	10 Áin	0.25 Ám	0.8 mm	0.031 in
Samtec Inc. ERM8-030-03-L-D-RA-TR	Gold	Board Guide Mounting Flange	Header Center Strip Contacts	6.25 mm	0.246 in	Surface Mount Right Angle	2		60	10 Áin	0.25 Ám	0.8 mm	0.031 in
Samtec Inc. ERM8-030-08.0-S-DV-TR	Gold	Board Guide	Header Center Strip Contacts	8.91 mm	0.351 in	Surface Mount	2	10 mm 12 mm 15 mm	60	30 Áin	0.76 Ám	0.8 mm	0.031 in
Samtec Inc. ERM8-030-01-L-D-RA-L-K-TR	Gold	Board Guide Latches Mounting Flange Pick and Place	Header Center Strip Contacts	6.25 mm	0.246 in	Surface Mount Right Angle	2		60	10 Áin	0.25 Ám	0.8 mm	0.031 in
