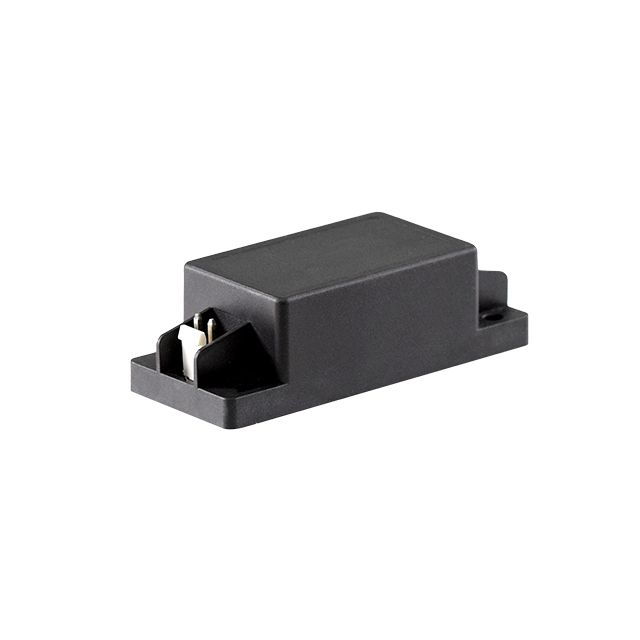

MSC15US12D
ActiveP-DUKE Technology
ISOLATED / 15W / VOUT: 12
MSC15US12D
ActiveP-DUKE Technology
ISOLATED / 15W / VOUT: 12
Description
General part information
MSC15US12D
Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC, 120 ~ 370 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | MSC15US12D |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | FCC, cURus, CB, CE, UKCA |
| Current - Output 1 | 1.25 A |
| Efficiency | 87 % |
| Features | Universal Input, Adjustable Output |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 15 W |
| Size / Dimension Height | 0.82 in |
| Size / Dimension Length | 2.82 in |
| Size / Dimension Width | 1.14 in |
| Standard Number | 60601-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 120 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 12 V |
