FK0MLDK
ActiveTAOGLAS
FAKRA GEN 1 CODE L CARMINE RED M
Deep-Dive with AI
Search across all available documentation for this part.
FK0MLDK
ActiveTAOGLAS
FAKRA GEN 1 CODE L CARMINE RED M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FK0MLDK |
|---|---|
| Cable Group | RG-174, 316 |
| Connector Style | SMB, Fakra |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Fastening Type | Locking Ramp |
| Features | Code L |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Carmine, Red |
| Impedance | 50 Ohms |
| Mating Cycles | 25 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.74 | |
| 100 | $ 2.11 | |||
| 500 | $ 1.93 | |||
| 1000 | $ 1.85 | |||
Description
General part information
FK0MLDK

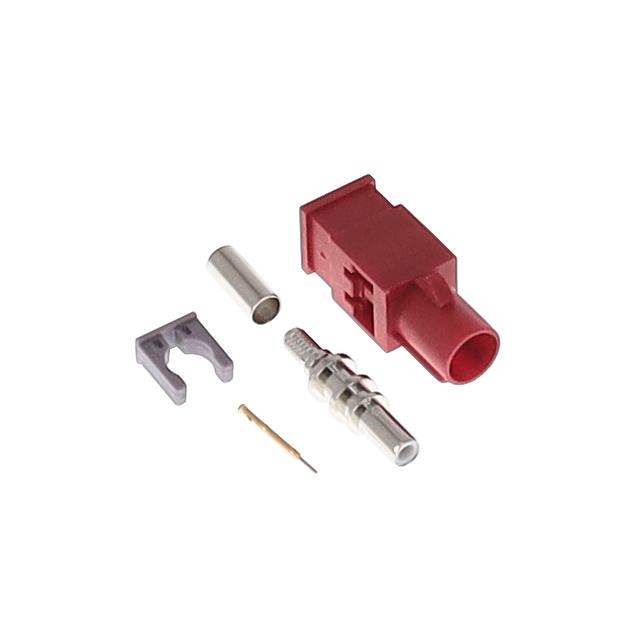

SMB, Fakra Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
Documents
Technical documentation and resources
No documents available
