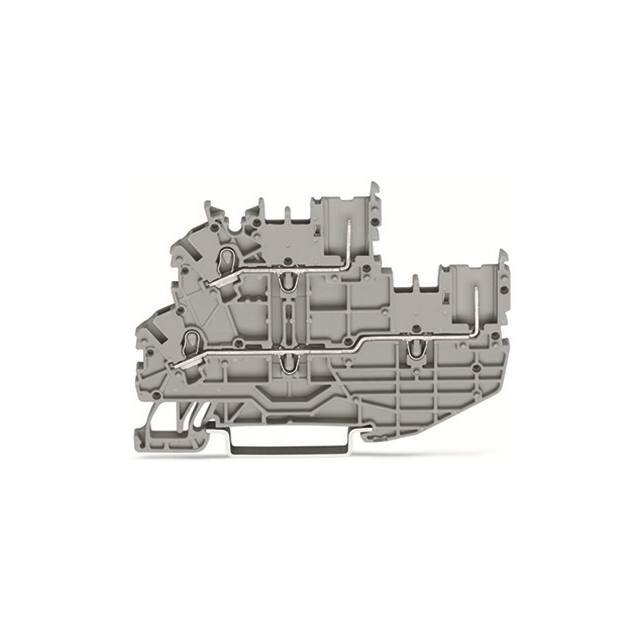

1-CONDUCTOR/1-PIN DOUBLE DECK RECEPTACLE TERMINAL BLOCK
2020-2203
ActiveWAGO Corporation
1-CONDUCTOR/1-PIN DOUBLE DECK RECEPTACLE TERMINAL BLOCK
Description
General part information
2020-2203
2 Position Terminal Block Gray Plug Connection 3.5mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 2020-2203 |
|---|---|
| Current - IEC | 13.5 A |
| Current - UL | 15 A |
| Height (Max) | 2.02 in |
| Housing Color | Gray |
| Length | 3.15 in |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | DIN Rail |
| Number of Levels | 2 |
| Number of Positions | 2 |
| Stripping Length (Max) | 11 mm |
| Stripping Length (Min) | 9 mm |
| Terminal Width | 3.5 mm |
| Termination Style | Push In, Plug Receptacles, Spring |
| Type | Plug Connection |
| Voltage - IEC | 500 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 24 AWG |
| Wire Gauge or Range - AWG (Min) | 16 AWG |
| Wire Gauge or Range - mm² (Maximum) | 1.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.14 mm² |
