20UL1015TPCBRO500
ActiveRemington Industries
#20 UL1015 600V TOPCOAT BRO 500'
20UL1015TPCBRO500
ActiveRemington Industries
#20 UL1015 600V TOPCOAT BRO 500'
Description
General part information
20UL1015TPCBRO500

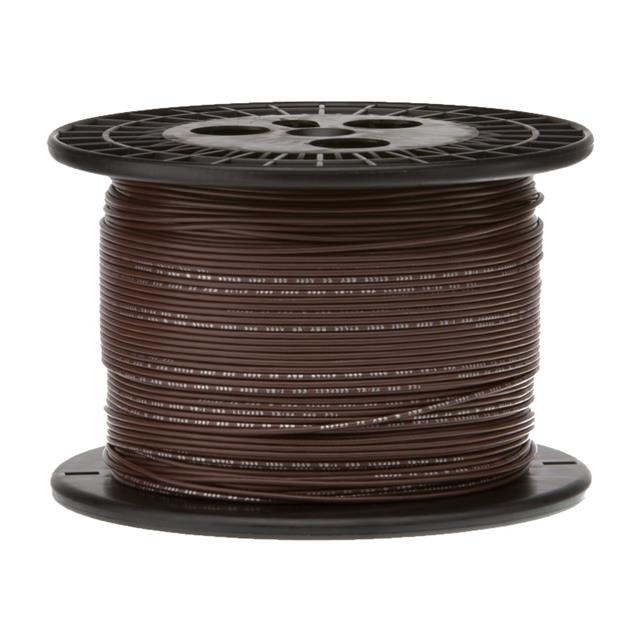

20 AWG Hook-Up Wire 10/30 Brown 600V 500.0' (152.4m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 20UL1015TPCBRO500 |
|---|---|
| Cable Type | Hook-Up |
| Conductor Material | Tinned, Copper |
| Conductor Strand Count | 10 |
| Conductor Strand Gauge | 30 |
| Features | Abrasion Resistant, Solvent Resistant, Oil Resistant, Chemical Resistant |
| Jacket (Insulation) Diameter | 0.099 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.03 in |
| Jacket Color | Brown |
| Length | 500 ft |
| Operating Temperature | 105 °C |
| Ratings | UL, Style, 1015 |
| Voltage | 600 V |
| Wire Gauge | 20 AWG |
